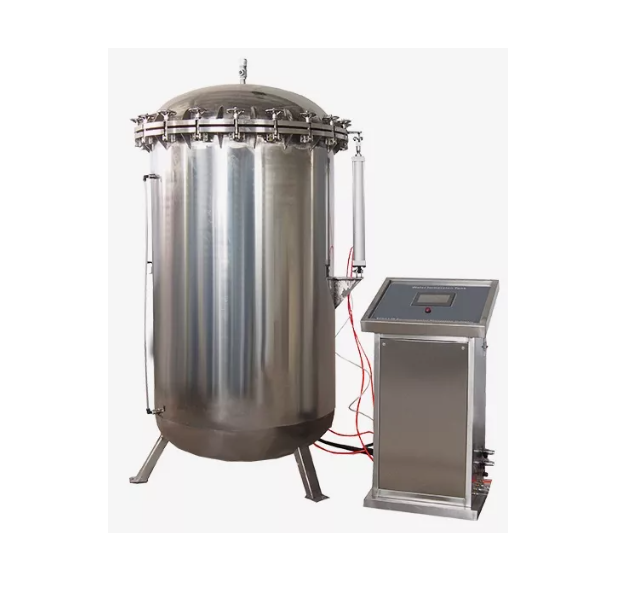

LIB R78-600 IPX7 IPX8 Water Immersion Tank

Internal Dimension (mm): Diameter 600mm * Height 1500 mm

Overall Dimension (mm): Diameter 800mm * Height 1800 mm

Pressure: 50m water depth pressure

Open mode: Pneumatic lid

Material: A3 steel plate, wall thickness 15mm

Controller: Programmable color LCD touch screen controller, Ethernet connection

Water Supply System: Storage water tank, Automatic water supply

Advantages

1. Dual-Layer Silicone Seal: LIB utilizes a dual-layer silicone sealing system combining soft and hard materials. The soft layer ensures flexible, uniform contact on uneven surfaces, while the hard layer preserves structural stability under high-pressure conditions. This configuration guarantees dependable waterproof performance for both IPX7 (1 m, 30 minutes) and IPX8 (simulated 50 m depth) tests, preventing leaks even after repeated cycles.

2. Reinforced A3 Steel Structure: The chamber walls are made of 15 mm thick A3 steel plates, designed to endure water pressures equivalent to 50 m depth. This sturdy construction resists deformation, extends service life, and ensures operator safety during high-pressure testing. The exterior surface also offers corrosion and impact resistance, maintaining reliable performance in demanding laboratory environments.

3. Adjustable Sample Rack: The internal sample holder supports up to 50 kg and allows both height and rotational adjustments. It accommodates a wide range of components, from small connectors to large actuator modules. Adjustable positioning keeps samples level and fully immersed, ensuring consistent water pressure exposure and accurate, repeatable test results.

4. Comprehensive Safety Measures: Safety is a core feature of LIB chambers. External water-level indicators allow real-time monitoring of immersion, leak detection sensors provide early warnings, and overpressure relief valves prevent excessive pressure from damaging the chamber or specimens. Heavy-duty, floor-mountable feet reduce vibration and tipping risks, while safety interlocks prevent accidental lid opening during testing.

5 . Advanced Control System: The chamber features a programmable color touchscreen and an intelligent PID control system, allowing precise management of pressure, timing, and test sequences. Multiple testing profiles can be saved for repeated use, ensuring consistent results, improved lab efficiency, and compliance with IEC 60529 and ISO 20653 standards.

6. Customizable Test Tanks: The chambers support IPX7 and IPX8 testing requirements. IPX7 tests products under immersion at 1 m depth for 30 minutes, while IPX8 simulates water pressures equivalent to 50 m depth, verifying the highest levels of water ingress protection.
