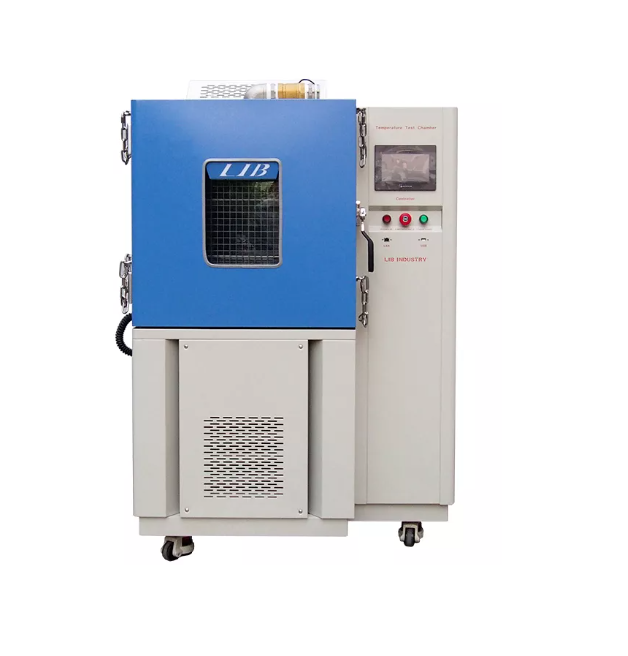

Internal dimension (mm) : 400*500*500
Overall dimension (mm): 860*1050*1620
Capacity: 100L
Temperature range: -20℃ ～+150 ℃
Low type: -70℃
Temperature fluctuations: ± 0.5 ℃
Temperature deviation: ± 2.0 ℃
Heating rate: 3 ℃ / min
Cooling rate: 1 ℃ / min
Controller: Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Refrigerant: R404A, R23
Exterior material: Steel Plate with protective coating
Standard configuration: 1 Cable hole (Φ 50) with plug; 2 shelves
Timing Function: 0.1~999.9 (S、M、H) settable
Explosion-Proof Safety: Reinforced door locks, observation windows, terminal blocks, and an integrated fire suppression sprinkler system
Technical Advantages
1. Explosion-Proof Safety: Reinforced door locks, observation windows, terminal blocks, and an integrated fire suppression sprinkler system provide maximum protection during high-temperature abuse testing, ensuring operator and laboratory safety even under thermal runaway conditions.
2. Rapid Thermal Cycling: The chamber supports multiple heating and cooling rates—5 °C/min, 10 °C/min, 15 °C/min, and customizable up to 20 °C/min—allowing accelerated testing that simulates real-world rapid temperature changes while significantly reducing test duration.
3. Precision and Uniformity: High-accuracy PT100 Class A sensors combined with intelligent PID control maintain temperature stability within ±0.5 °C. Optimized airflow ensures uniform temperature distribution throughout the workspace, delivering reliable and repeatable results for all battery types.
4. Customizable Testing: Supports up to 120 programs with 100 steps each, enabling complex multi-stage thermal tests tailored to industry standards or specific R&D requirements. Test sequences can simulate repeated aging cycles, thermal abuse, and rapid environmental transitions without operator intervention.
5. Robust Construction: The SUS304 stainless-steel interior resists corrosion and simplifies maintenance, while the reinforced steel exterior ensures structural stability under extreme conditions, providing long-term durability for continuous testing programs.
6. High Throughput: With large internal volumes ranging from 225 L to 1000 L and rapid temperature cycling, the chamber increases laboratory efficiency, supporting simultaneous testing of single cells, battery modules, or full packs for R&D, quality assurance, and safety validation.
