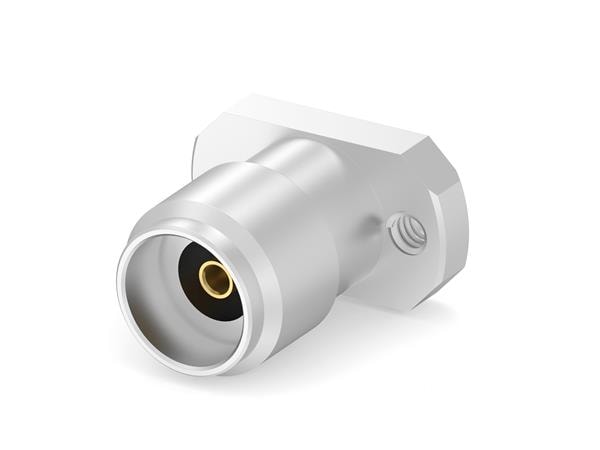

Gender: Socket (Female)
Polarity: Standard
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: 2.92 mm
Body Style: Flange
Body Finish: Passivated
Orientation: Straight
REACH - SVHC: Details
Body Material: Stainless Steel
Mating Cycles: 500 Cycles
Mounting Style: Flange Mount
Voltage Rating: 335 Vrms
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 40 GHz
Minimum Frequency: DC
Termination Style: Twist On
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
