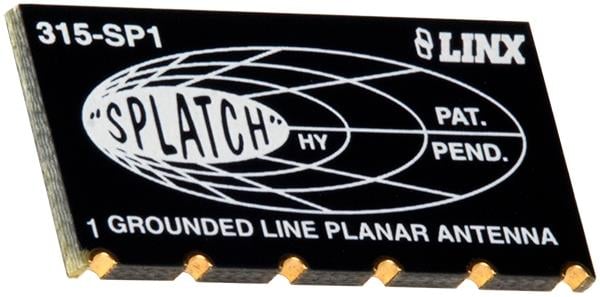

Linx Technologies - TE Connectivity ANT-315-SP Passive Antenna SMD Planar Ant. 315MHz

VSWR: 1.9

Width: 13.7 mm

Height: 1.5 mm

Length: 27.94 mm

Bandwidth: 5 MHz

Impedance: 50 Ohms

Technology: Planar

Wavelength: 1/4 Wave

Application: ISM, Remote Control, Alarms, Security Systems

Unit Weight: 3.560 g

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Embedded Monopole

Number of Bands: 1 Band

Center Frequency: 315 MHz

Mechanical Style: Chip

Ground Plane Size: 38 mm x 84 mm

Maximum Frequency: 317 MHz

Minimum Frequency: 312 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: UHF

Maximum Operating Temperature: + 130 C

Minimum Operating Temperature: - 40 C
