Direct access to our certified experts
Practical applications include:
Offshore Chemical Injection
Hydraulic line monitoring for well control valves and leak detection
Wash water measurement and general metering of low and high viscosity fluids
Subsea Chemical Injection and hydraulic fluid measurement
Technical specification:
Flow range (L/hr): 3.9 to 800
Process Connection: NPT 1/2", Autoclave Medium Pressure: 9/16”
Max Pressure (bar/psi): 1035/15,000
Seal Material Wetted/Pressure: FEP Encapsulated FKM
Filtration (microns): 40
Measuring Accuracy: ±1.0% of reading
Linearity: ±0.5% of reading
Repeatability: ±0.1% of reading
Viscosity: 0.5 – 100,000 cSt or greater
Temperature Rating: -40°C to 75°C (up to 100°C with remote mount display)
Material of construction
Body: 316L Stainless Steel (other materials on request)
Rotor: Ultra low friction PVD coated titanium
Pressure balance chamber: Ultra low friction PVD coated Nitronic-60
Seals: FEP Encapsulated FKM

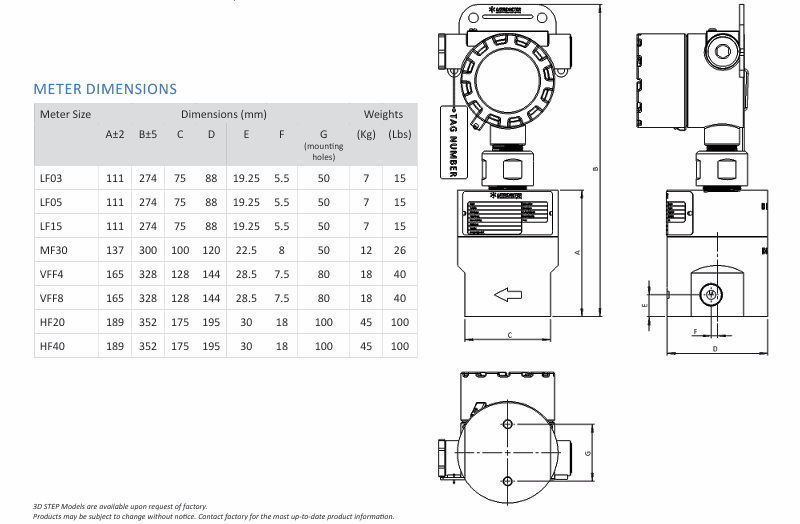

Dimensions: See dimensional drawing (In details)
See datasheet for choosing suitable configurations!
