Max Flow Rate (Single Channel): 380 mL/min
Speed Range: 0.1–100 rpm (CW/CCW)
Speed Resolution: 0.1 rpm
Display: 3-digit LED display for current speed
Work Mode: Continuous mode
Control Mode: Keypad control; Footswitch control; External control; Communication control
External Control: Start/stop; running direction; speed
Communication Control: RS485
Calibration: N/A
Dimensions (L × W × H): 232 × 142 × 149 mm
Power Supply: AC 100–240 V, 50/60 Hz
Operating Temperature: 0 ~ 40 °C
Relative Humidity: < 80%
IP Rating: IP20
Weight: 2.3 kg

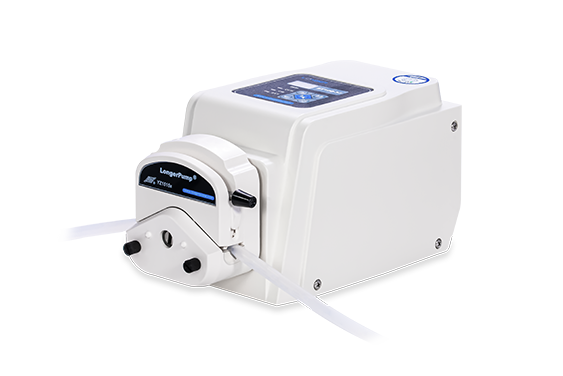

Acceptable pump heads for BT100-3J are YZ1515x,YZ2515x,YZII15, YZII25, DG, BZ, DG15 and DMD15-13.
The pump delivers flow rates from 0.0002 to 380 mL/min.
The speed can be adjusted manually or automatically through external control interface.
Store the running parameter automatically.
Easy to operate.
CE marking.
