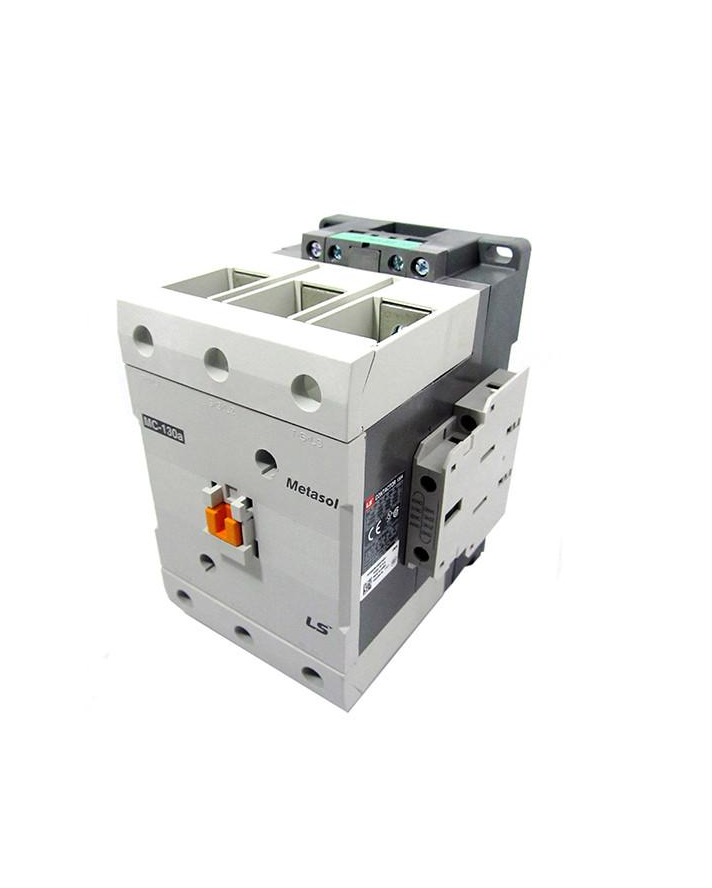

Current: 130A
Control voltage: 220VAC
Contact arrangement: 2NO2NC
Number of poles: 3 poles
Rated operational voltage (Ue): 1000V
Rated insulation voltage (Ui): 1000V
Rated frequency: 50/60Hz
Rated impulse withstand voltage (Uimp): 8kV
Maximum operating frequency per hour (AC3): 1800 operations per hour
Power
AC-1, Thermal current [A]: 200
AC-3 220/240V [kW]/[A]: 37/130
AC-3 380/440V [kW]/[A]: 60/130
AC-3 500/550V [kW]/[A]: 60/90
AC-3 690V [kW]/[A]: 55/60
AC-3 1000V [kW]/[A]: 75/50
Weight: 2.4 kg
Dimensions: 119 x 158 x 130.3 [mm].
