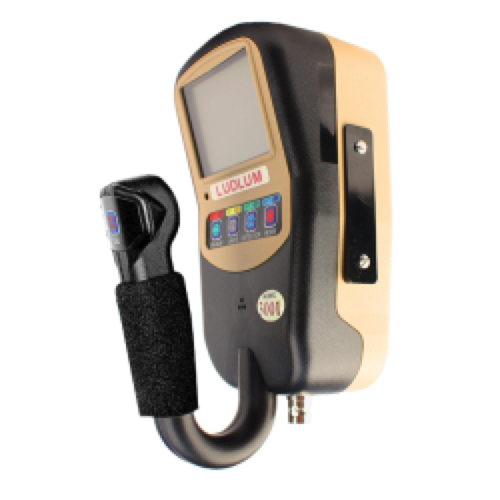

LUDLUM 3001 Multi-Detector Digital Survey Meter (0.0 cps ~ 99.9 kcps)

Compatible Detectors: GM, scintillation, or proportional

Display: 3-digit auto-ranging LCD with large 20 mm (0.8 in.) digits.

Units: (k)cps, (k)cpm, (k)Bq, (k)dpm, (μ)(m)R(/h), (μ)(m)Sv(/h).

Indicators: bar graph, MAX, ALARM, USB, audio, low battery.

Display Range:

0.0 cps to 99.9 kcps

0.00 cpm to 999 kcpm

0.00 Bq to 99.9 kBq

0.00 dpm to 999 kdpm

0.00 μR/h to 999 R/h

0.00 μSv/h to 999 Sv/h

Operational display ranges are dependent on the detector and dead time configuration. The minimum and maximum display can be set to limit the display to the calibrated range.

Linearity: within 10% of true value

Data Logging: Can store up to 1000 data points internally. Requires Lumic Data Logger Kit, see Options.

Response Time: User-selectable from 1 to 60 s, or Auto-Response Rate FAST or SLOW

Alarms: Two adjustable count rate, exposure/dose, and scaler alarm setpoints adjustable over the display range

Overload Protection: High count rate saturation protection prevents false display of lower count rates. "OL" will appear on the display and an audio warning will be triggered.

High Voltage: 400 to 1500 Vdc

Threshold: -2 to -100 mVdc

Audio: Approximately 4.5 kHz, click audio greater than 65 dB at 0.6 m (2 ft), alarm audio greater than 72 dB

Power: Four alkaline “AA” batteries

Temperature Range: -20 to 50 °C (-5 to 122 °F)

May be certified for operation from -40 to 65 °C (-40 to 150 °F)

Enviornmental Rating: NEMA rating of 5 or IP rating of 53

Size (H x L x W): 16.5 x 11.4 x 21.6 cm (6.5 x 4.5 x 8.5 in.)

Weight: 0.7 kg (1.6 lb) (excluding detectors and clips)
