Product type: 840 FM
Application range: 0-40 mm
Tooth spans: 0.5
Measuring span: 2 mm
Size of measuring surface: 12 x 12 mm
Parallel error: 2 µm
Flatness: 0.5 µm
Repeatability fw: 1 µm
Measuring force: 7.5 N

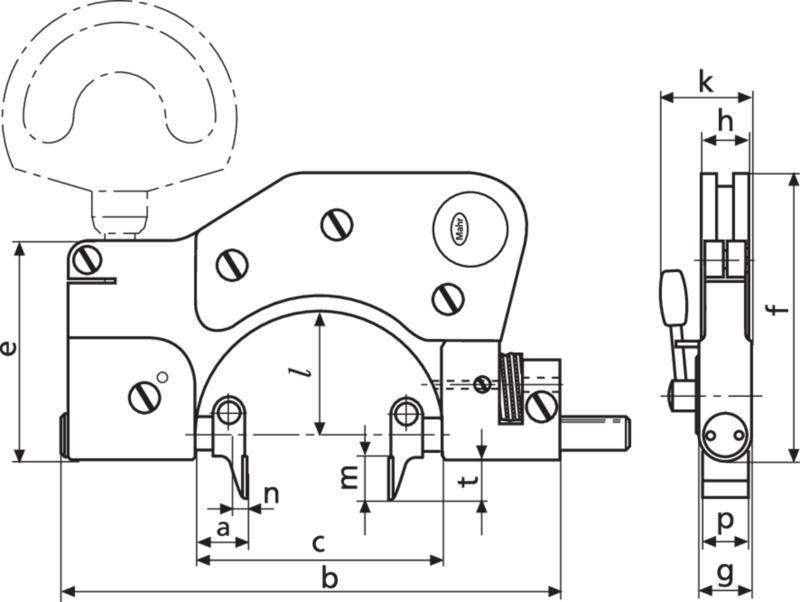

Dimensions: a 14 mm | b 140 mm | c 68 mm | e 60 mm | f 77 mm | g 13 mm | h 13 mm | k 25 mm | l 34 mm | m 12 mm | p 12 mm | t 11 mm
