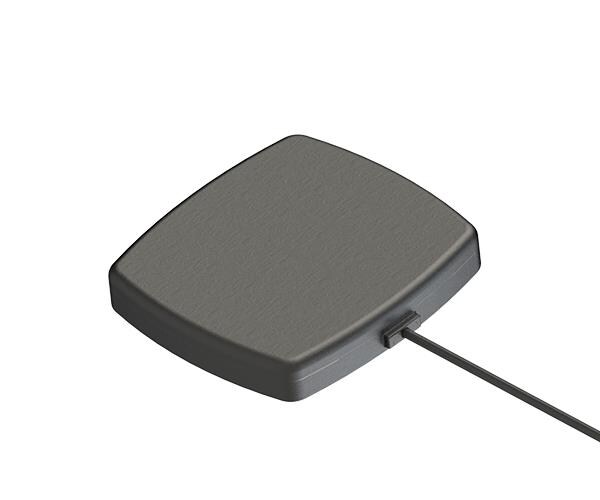

Maxtena MEA-1621-AM Passive Antenna Iridium Certified Antenna - Adhesive Mount

Gain: 4.5 dBic

VSWR: 1.2:1

Style: Square

Width: 76 mm

Height: 16 mm

Length: 80 mm

Bandwidth: 1621 MHz

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 150 cm LM4100

Application: Vehicle Tracking, Fleet Tracking, Military, Security, Iridium SBD, Oil & Gas Industries, Navigation Devices, Mining Equipment, LBS Applications, M2M Applications, Handheld Devices, Law Enforcement

Cable Length: 150 cm

Polarization: RHCP

Mounting Style: Adhesive Mount

Frequency Range: 1.616 GHz to 1.627 GHz

Number of Bands: 1 Band

Center Frequency: 1.621 GHz

Mechanical Style: Module

Maximum Frequency: 1.627 GHz

Minimum Frequency: 1.616 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: Iridium

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
