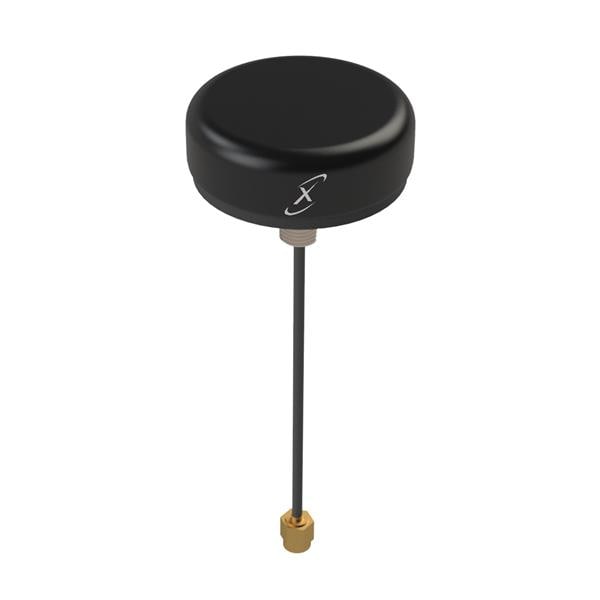

Maxtena MEA-GGG-SM GNSS Antenna GPS/GLONASS Screw Mount

Gain: - 2.6 dBiC, - 3.9 dBiC, 28 dB

VSWR: 1.2:1, 1.4, 1.4:1

Height: 17.5 mm

IP Rating: IP69K

Impedance: 50 Ohms

Cable Type: LMR100

Application: Asset Tracking, Embedded Applications, Law Enforcement, LBS and M2M Applications, Mining Equipment, Military and security, Navigation Devices, Oil and Gas Industries, Vehicle and Fleet Tracking

Cable Length: 2 m

Polarization: RHCP

Mounting Style: Screw Mount

Number of Bands: 2 Band

Mechanical Style: Flat, Round

Maximum Frequency: 1.61 GHz

Minimum Frequency: 1.57542 GHz

Termination Style: Connector

Antenna Connector Type: SMA (Male)

Protocol - GPS, GLONASS: Galileo, GLONASS, GPS, QZSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
