Gain: - 1.7 dBi, - 1.7 dBi, - 1.3 dBi, 0.6 dBi, 1.2 dBi, 0.0 dBi, 5.2 dBi, 4.5 dBic
VSWR: 3.3:1, 2.3:1, 2.1:1, 1.7:1, 1.4:1, 1.6:1, 2.5:1, 1.2:1

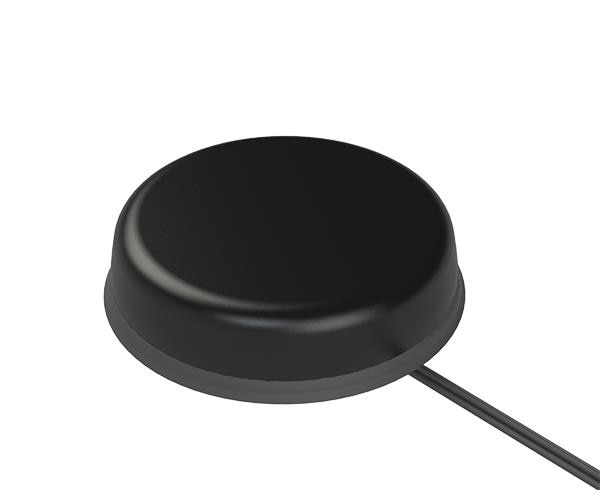

Style: Puck
Length: 31.5 mm
Diameter: 146 mm
IP Rating: IP67, IP69K
Impedance: 50 Ohms
Cable Type: 200 cm LMR100 x 4, 180 cm LMR100 x 4
Application: IoT Applications, Telematic, Navigation, Satellite Communications, Cellular Applications
Polarization: Linear
Power Rating: 25 W, 24.3 W, 10 W
Mounting Style: Direct / Permanent Mount
Electrical Type: Active
Number of Bands: 8 Band
Center Frequency: 700 MHz, 850 MHz, 900 MHz, 915 MHz, 933 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz, 2500 MHz, 2600 MHz, 2700 MHz, 3300 MHz, 4000 MHz, 4900 MHz, 5583 MHz, 6000 MHz, 6500 MHz, 7000 MHz,
Mechanical Style: Module
Maximum Frequency: 7.125 GHz
Minimum Frequency: 617 MHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM, U-NII
Antenna Connector Type: SMA Male
Protocol - GPS, GLONASS: Galileo, GLONASS, GPS, QZSS
Protocol - WiFi - 802.11: 802.11, LoRaWAN, Sigfox, WiFi, WLAN, WiMAX
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G NR, Cellular (NBIoT, LTE), GSM, UMTS
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
