Rated input power: 1800 W
Output power: 1200 W
Drill Ø steel: 32 mm / 1 1/4 "
Drill Ø soft wood: 70 mm / 2 3/4 "
No-load speed: 0 - 170 / 0 - 320 / 0 - 470 rpm
Revolutions at rated load: 110 / 190 / 280 rpm
Gears: 3
Maximum torque: 190 / 120 / 90 Nm // 1682 / 1062 / 797 in-lbs
Collar diameter: 65 mm / 2 9/16 "
Drill spindle with inside taper: MT 3
Weight (without power cable): 7.8 kg / 17.2 lbs kg
Cable length: 5 m / 16 ft
Vibration
Drilling in metal: 3.5 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 90 dB(A)
Sound power level (LwA): 101 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
Drift key
Long side handle
Accessories
DRILLING/CHISELLING
Wood drill bits, Metal drill bits, Core drills, Further accessories for (impact) drills, Further accessories for core drills
CHUCKS
Geared chucks, Chuck keys, Further accessories chucks
OTHER ACCESSORIES
Stirrers, Occupational safety
Datasheet
Features

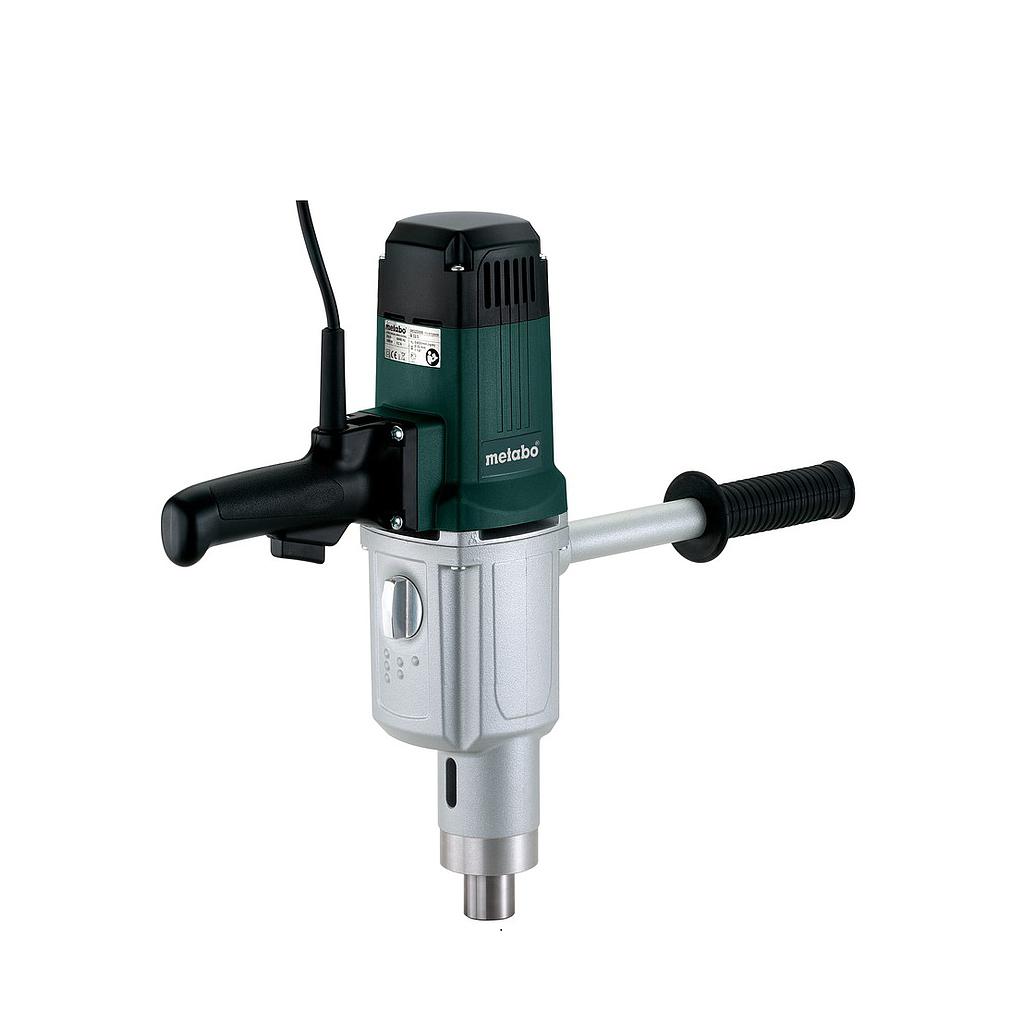

Powerful three-speed drill with extra high torque
Robust mechanical gearbox with oil bath lubrication
Robust die cast aluminium gear housing for optimum heat dissipation and durability
Vario (V)-Electronics for working at customised speeds to suit various application materials
Safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
For easy drilling of larger diameters and driving in of very long screws
