Max. single blow energy (EPTA): 3.1 J
Maximum impact rate: 4470 bpm
Rated input power: 800 W
Drill-Ø concrete with hammer drills: 32 mm / 1 1/4 "
Drill-Ø masonry with core bits: 82 mm / 3 1/4 "
Drill-Ø steel: 13 mm / 1/2 "
Drill-Ø soft wood: 35 mm / 1 3/8 "
No-load speed: 0 - 1150 rpm
Revolutions at rated load: 920 rpm
Bit retainer: SDS-plus
Collar diameter: 50 mm / 1 31/32 "
Weight (without power cable): 3.6 kg / 7.9 lbs
Cable length: 4 m / 13 ft
Vibration
Hammer drilling concrete: 12.9 m/s²
Uncertainty of measurement K: 1.5 m/s²
Chiseling: 10.9 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 91 dB(A)
Sound power level (LwA): 102 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
Hammer chuck for tools with SDS-plus shank end
Drilling depth guide
Plastic carry case
Keyless chuck for tools with cylindrical shank
Metabo VibraTech (MVT) side handle
Accessories
DRILLING/CHISELLING
SDS-plus drill/chisel bits, Wood drill bits, Metal drill bits, Hole saws, Universal drill bits, Diamond drill bits, Drill bit assortments, Core bits, Further accessories for (impact) drills, Further accessories for rotary and chipping hammers
ACCESSORY SETS/SPECIALS
Bit sets, Drill bit sets, Chisel bit sets
SCREWDRIVING/FIXING
Screwdriving bits, Screwdriving bit sets, Bit holders, Screw-type angle attachments
OTHER ACCESSORIES
Occupational safety
Datasheet
Features

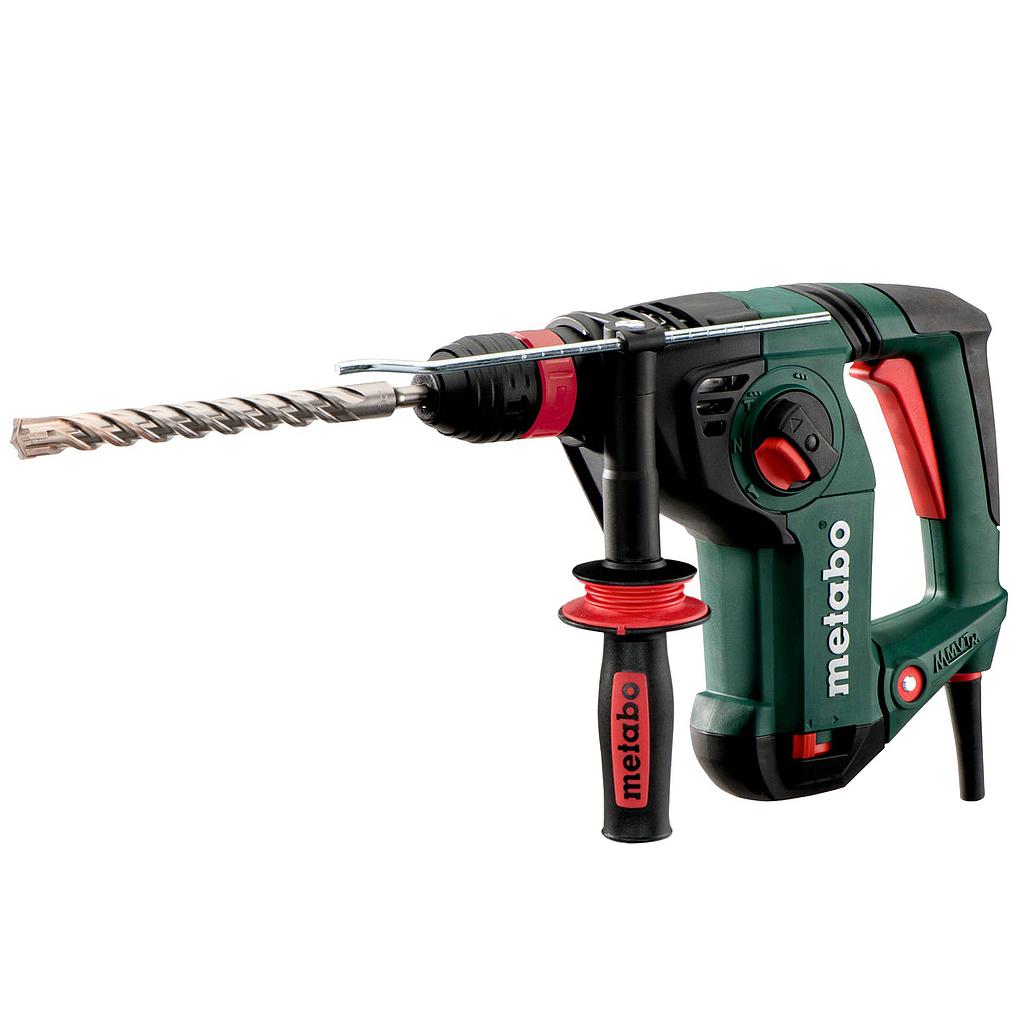

Combination hammer with 3 functions: hammer drilling, drilling and chiselling
Metabo Quick: quick change between SDS Plus hammer chuck and keyless chuck for drilling in wood and metal
Metabo VibraTech (MVT): integrated damping system and side handle to reduce vibrations in order to protect the user’s health
Ergonomic housing shape for chiselling tasks without side handle
Vario (V)-Electronics for working at customised speeds to suit various application materials
Metabo Marathon-motor with dust protection for long service life
High performance hammer action, precisely mounted in a housing made of aluminium alloy: long-lasting and robust
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
Cable-protecting ball joint for optimal freedom of motion when working
