Type of battery pack: LiHD
Battery voltage: 18 V
Battery pack capacity: 4 x 7 Ah
Max. single blow energy (EPTA): 3.1 J
Maximum impact rate: 4500 bpm
Ø Drill concrete with hammer drills: 32 mm / 1 1/4 "
Ø Drill masonry with core bits: 68 mm / 2 11/16 "
Ø Drill steel: 13 mm / 1/2 "
Ø Drill soft wood: 30 mm / 1 3/16 "
No-load speed: 0 - 1100 rpm
Bit retainer: SDS-plus
Weight (including battery pack): 5.7 kg / 12.6 lbs
Vibration
Hammer drilling concrete: 13 m/s²
Uncertainty of measurement K: 1.5 m/s²
Chiseling: 10.5 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 88 dB(A)
Sound power level (LwA): 99 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
Hammer chuck for tools with SDS-plus shank end
Drilling depth guide
4 x LiHD battery packs (18 V/7.0 Ah)
2 x Quick Chargers ASC Ultra "AIR COOLED“
MetaLoc case
Keyless chuck for tools with cylindrical shank
Metabo VibraTech (MVT) side handle
Accessories
DRILLING/CHISELLING
SDS-plus drill/chisel bits, Wood drill bits, Metal drill bits, Hole saws, Universal drill bits, Diamond drill bits, Drill bit assortments, Core bits, Further accessories for (impact) drills, Further accessories for rotary and chipping hammers
ACCESSORY SETS/SPECIALS
Bit sets, Drill bit sets, Chisel bit sets
SCREWDRIVING/FIXING
Screwdriving bits, Screwdriving bit sets, Bit holders, Screw-type angle attachments
ACCESSORIES FOR CORDLESS MACHINES
Battery packs, Charger
OTHER ACCESSORIES
Occupational safety
Datasheet
Features

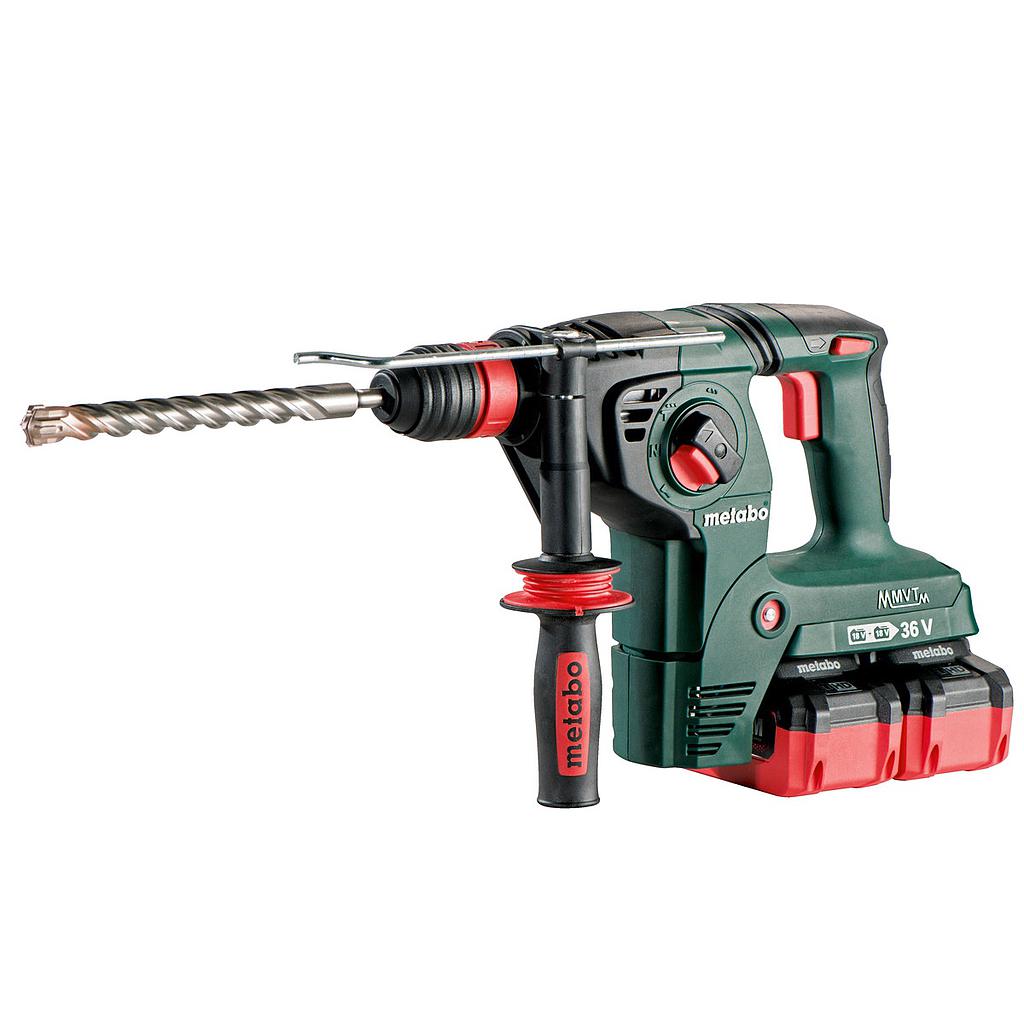

Combination hammer with 3 functions: hammer drilling, drilling and chiselling
100% compatibility with the 18 Volt class: powerful 36 Volt operation with two 18 Volt battery packs from Metabo
Metabo VibraTech (MVT): working, also continuously, in a low-fatigue manner whilst protecting the user's health
Ergonomic housing shape for chiselling tasks without side handle
Metabo Quick: fast, tool-free chuck for working with SDS-plus and straight shank drill bits
Variospeed (V) Electronics for working at customised speeds to suit various application materials
Metabo S-automatic safety clutch: mechanical decoupling of the drive for safe working should the drill stop unexpectedly
Battery packs with capacity display for checking the charge status
