Type of battery pack: Li-ion
Battery voltage: 18 V
Battery pack capacity: 2 x 5.2 Ah
Maximum torque, soft: 60 Nm / 531 in-lbs
Pulse torque: 60 Nm / 48 ft. lbs
Maximum torque, hard: 120 Nm / 1062 in-lbs
Adjustable torque: 1 - 20 Nm // 9 - 177 in-lbs
Ø Drill masonry: 16 mm / 5/8 "
Ø Drill steel: 13 mm / 1/2 "
Ø Drill soft wood: 65 mm / 2 1/2 "
No-load speed: 0 - 500 / 0 - 1850 rpm
Maximum impact rate: 32300 bpm
Chuck capacity: 1.5 - 13 mm // 1/16 - 1/2 "
Weight (including battery pack): 2.4 kg / 5.3 lbs
Vibration
Drilling in metal: 3.2 m/s²
Uncertainty of measurement K: 1.5 m/s²
Impact drilling concrete: 20.7 m/s²
Uncertainty of measurement K: 1.5 m/s²
Noise emission
Sound pressure level: 92 dB(A)
Sound power level (LwA): 103 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
Quick-change chuck
Belt hook and bit case
2 x Li-Power battery packs (18 V/5.2 Ah)
Charger ASC 55 "AIR COOLED"
Plastic carry case
Quick-change bit holder
Side handle
Accessories
DRILLING/CHISELLING
Concrete/stone drill bits, Wood drill bits, Metal drill bits, Hole saws, Universal drill bits, Glass drill bits, Diamond drill bits, Drill bit assortments, Core bits, Further accessories for (impact) drills
ACCESSORY SETS/SPECIALS
Bit sets, Drill bit sets
CHUCKS
Chucks "Quick", Chuck keys
SCREWDRIVING/FIXING
Screwdriving bits, Screwdriving bit sets, Bit holders, Screw-type angle attachments, Accessories for impact drivers & wrenches, Other accesssories screwdriving/fixing
ACCESSORIES FOR CORDLESS MACHINES
Battery packs, Charger, Special accessories
OTHER ACCESSORIES
Case systems, Occupational safety
Datasheet
Feature

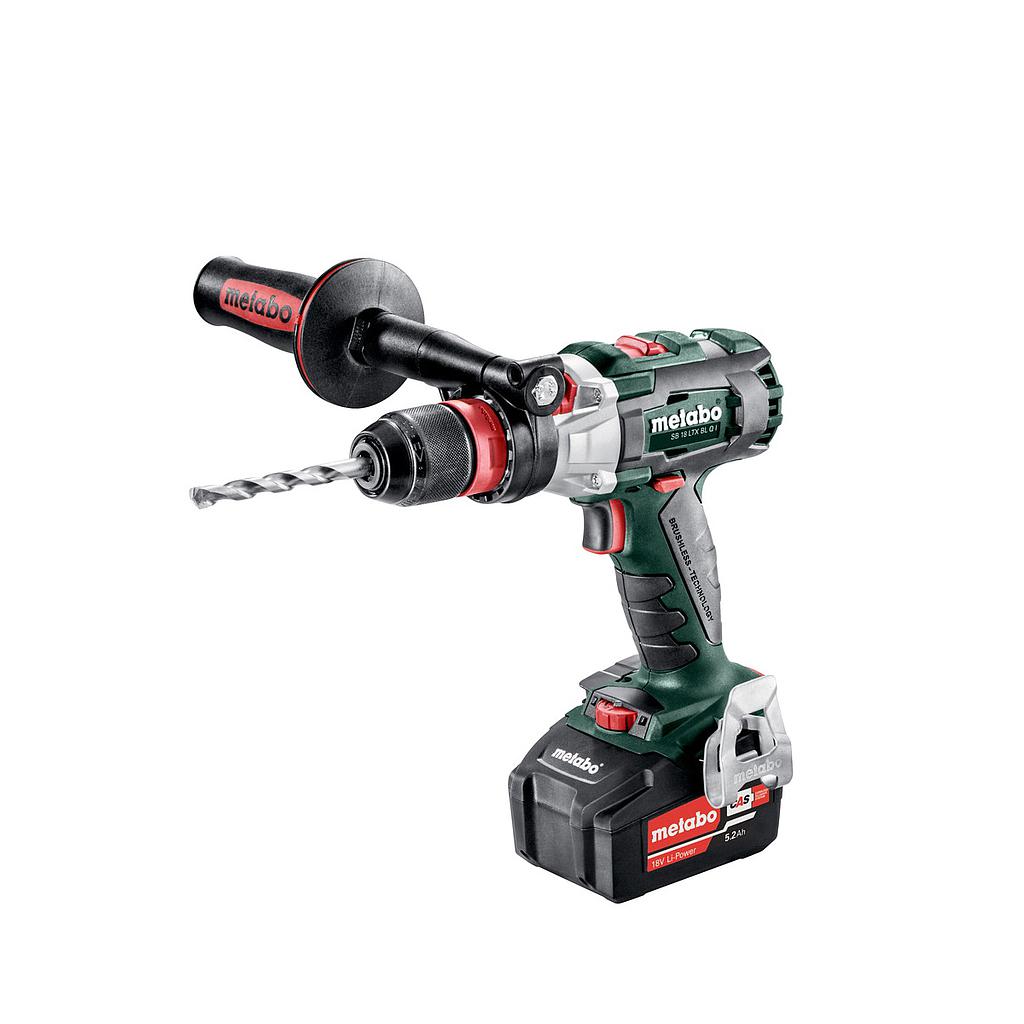

Brushless hamemr drill with maximum power for demanding applications
Metabo Quick System: quick change of bit retainer and bits, for flexible working
Selectable "impuls" mode for removal of stubborn screws and for spot-drilling on smooth surfaces
Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving
Precision Stop: electronic torque control with increased precision for precise, delicate working
High-performance impact mechanism for optimum drilling performance
Spindle with hexagonal recess for screwdriver bits for working without chuck
Collar (Ø 43 mm) for versatile use
Integrated working light to illuminate the contact area
Robust die cast aluminium gear housing for optimum heat dissipation and long service life
With handy belt hook and bit case which can be fixed either on the right or left side
Battery packs with capacity display for checking the charge status
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
