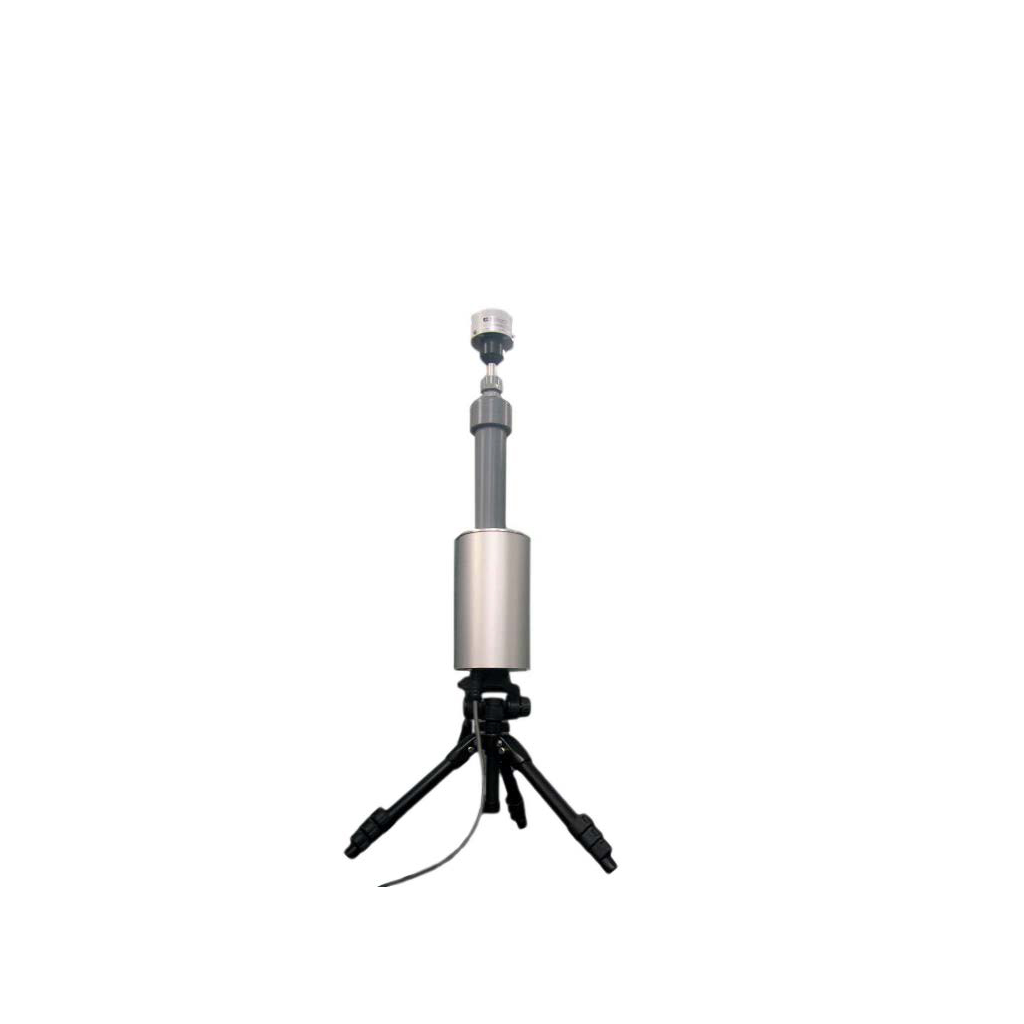

METONE 212 Ambient Particulate Profiler (0.3~10µm; 1LPM)

Measurement Principle: Optical, Light-Scatter Using a Laser Diode

Flow Rate: 1LPM

Measuring Ranges: 0.3~10µm (eight selectable sizes)

Concentration: 0~9000000 Particles per cubic ft.

Sample Flow Rate: 1LPM

Sample Interval: 1~3600 seconds (1 hour)

Accuracy: ±10% to calibration aerosol

Communication: RS232 Output; RS422 or RS485 available as special order

Power: 12 VDC 240 mA maximum; Inlet Heater, additional 750 mA

Temperature:

- Operating: 0~50°C

- Storage: 20~60°C

Weight: 3Ib (1.2kg)

Size: Diameter 4.0 in, Length 7.5 in + 12” for inlet tube

Software Included: Real-time datalogging

Datasheet
