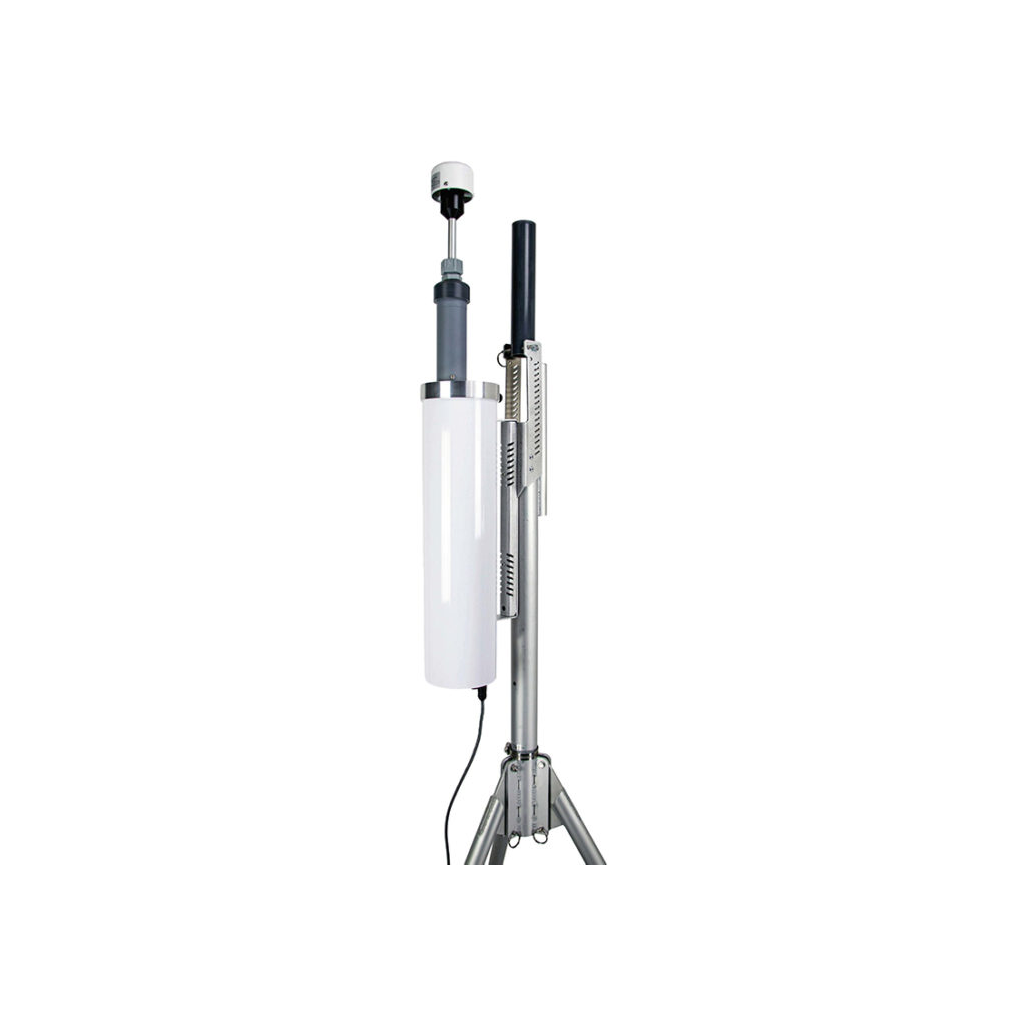

METONE ES-412 Portable Simultaneous Particulate Profiler (1LPM; 0.1μg/m3; 2 channels)

Parameter

Operation: Right angle light scatter detection using a laser diode as light source

Measurement Resolution: 0.1μg/m3

Number of Mass Channels: 2 (PM2.5, PM10)

Data Storage Intervals Sample: 1, 5, 10, 15, 30, or 60 minutes

Air Flow Rate: 1LPM

Sheath Air Flow Rate: 1LPM

Flow Control Communications: Active volumetric flow control

Connections Operating: USB

Temperature Storage: 0~50°C

Temperature Ambient: -20~60°C

Humidity Range: 0~95%, non-condensing

Electrical

Power Supply: Universal 100~240 VAC input, 50/60Hz

Power Consumption: 12 VDC. Max operating current 1400mA

Interface

Communication:

- Built-in CCS modem, Verizon™ 4G LTE (U.S. Domestic)

- GSM (Internationally with Over 550 Networks)

Communications Protocol: Terminal Command Set, MOI 7500 Protocol

Data Plan: 3 years included

Physical

Weight: 9.5lbs with power supply (4.31kg)

Dimensions (WxHxD): 5.125x31x8.25in (13x79x21cm)

Supplied Accessories:

• Operator's Manual

• Calibration Certificate (NIST)

• Power Supply

• Carrying Case

• Software Available from Website

Optional Accessories:

• Tripod

• Mobile Battery Power Supply

• Solar Charging Panel for Extended Operation
