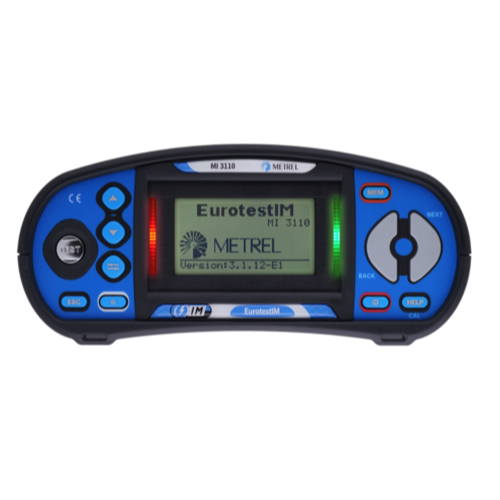

Metrel MI 3110 Standard set Single-Functional Testers (550 V)

Voltage: 0 V ÷ 550 V / 1 V / ±(2 % of reading + 2 digits)

Phase rotation: 100 V ÷ 550 V / Result displayed 1.2.3 or 3.2.1

Frequency: 10.0 Hz ÷ 500.0 Hz / 0.1 Hz / ±(0.2 % of reading + 1 digit)

Line impedance:

0.00 Ω ÷ 9.99 Ω / 0.01 Ω / ±(5 % of reading + 5 digits)

10.0 Ω ÷ 99.9 Ω / 0.1 Ω / ±(5 % of reading + 5 digits)

Voltage drop: 0.0 % ÷ 99.9 % / 0.1 % / (Consider accuracy of line impedance)

First fault leakage current (ISFL): 0.0 mA ÷ 19.9 mA / 0.1 mA / ±(5 % of reading + 3 digits)

IMD test current: 0.0 mA ÷ 19.9 mA / 0.1 mA / (Calculated value)

IMD test insulation resistance: 5 kΩ ÷ 640 kΩ / 5 kΩ / (Indicative values up to 128 steps)

GENERAL DATA

Power supply voltage: 9 VDC (6 x 1.5 V battery or accu, size AA)

Operation time: Typical 20 h

Working temperature range: 0 °C ÷ 40 °C

Overvoltage category: 600 V CAT III; 300 V CAT IV

Protection classification: Double insulation

Protection degree: IP 40

Connectivity: RS232 and USB

Weight: 1.1 kg

Dimensions (W x H x D): 230 x 103 x 115 mm

• Instrument MI 3110 EurotestIM

• Soft carrying bag

• Mains cable

• Test lead, 1.5 m

• Crocodile clip, black, green, brown

• Test probe, black, green, brown

• NiMH rechargeable batteries, type AA, 6 pcs

• PC software EuroLink PRO

• USB and RS232 cable

• Instruction manual

• Calibration certificate
