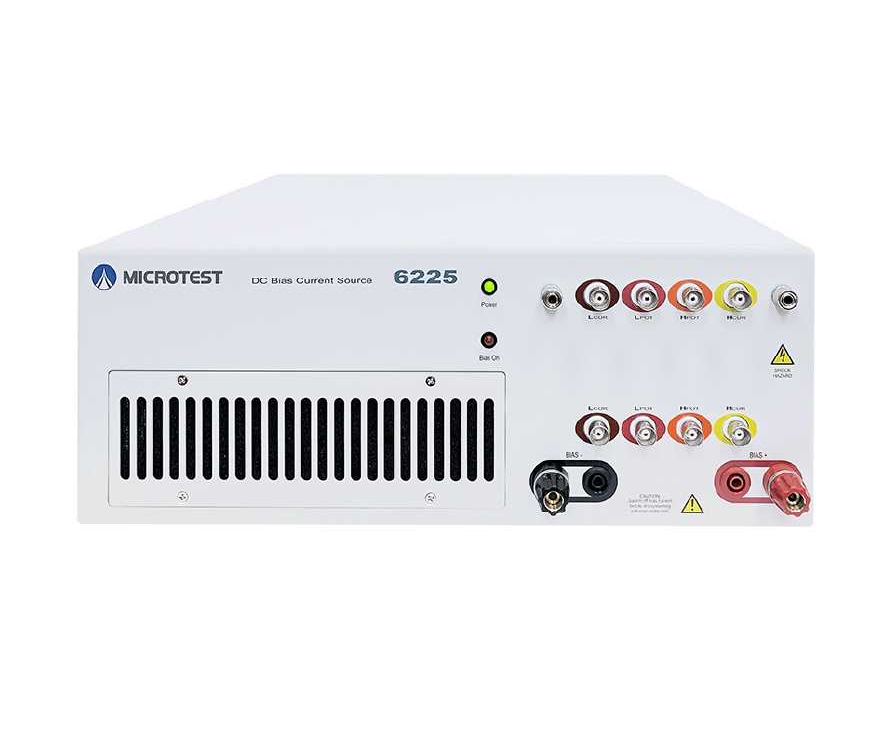

MICROTEST 6225 DC Bias Current Source (20A)

DC Bias Current Source:

DC Bias Current Max.: 20A

units of the DC Bias: 1

Power consumption: 320W Max.

Output Current (unit): 20A

Option LCR Meter/Impedance Analyzer:

6632: 100Hz-10MHz

6356: 100Hz-500kHz

6355: 100Hz-200kHz

DC Bias Current Source 6243

Accuracy (6632):

0.000A-1.000A 1%+5mA:

1.001A-5.000A 2%:

5.001A-20.000A 3%:

DCR Test: Yes

Constant power output: Yes

Current switch: /

System:

Power Supply: Voltage：88-264Vac; Frequency：47-63Hz

Environment: Temperature：10℃-40℃; Humidity：20-90%RH

Dimension: 356x147x497 mm (W*H*D)/6225

Weight: 15 Kg (6225)

Display: -

Interface: RS-232、Handler
