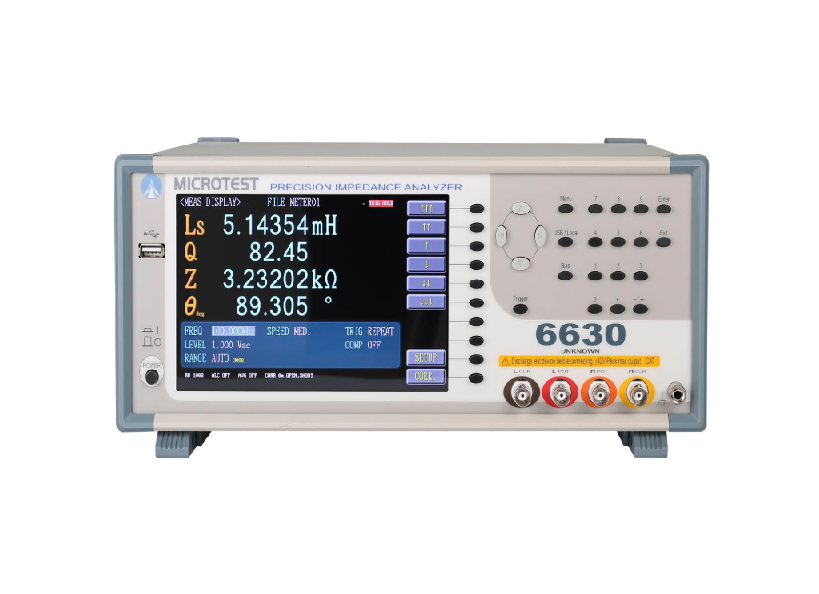

MICROTEST 6630 Precision LCR Meter (10Hz ~ 3 MHz)

Test Frequency: 10Hz ~ 3MHz

Basic Accuracy: ± 0.05%

AC Measurement

Test Signal Voltage Level: 10mV - 2Vrms

Voltage Minimum Resolution: 1mV

Test Signal Current Level: 200µA - 20mArms

Current Minimum Resolution: 10µA

Accuracy:

ALC ON：6％ * Current ± 20µA

ALC OFF：10％ * Current ± 20µA

DC Measurement: 1V (fixed)

Test Time (The fastest): < 3ms

Output Impedance: 25Ω/100Ω, switchable (Nominal value)

Interface: RS-232、GPIB、Handler、LAN、USB Host/Device

Power Supply: Voltage 90V ～ 264Vac

Frequency: 47Hz ~ 63Hz

Power Consumption: Low power consumption: Maximum 30W (Nominal value)

Display: 7.0”TFT, 800x480 color screen

Environment

Temperature: 10℃ ～ 40℃

Humidity: ≦80%

Dimension (W*H*D): 336x147x340 mm

Weight: 3 kg
