Measuring direction: ±X, ±Y, +Z
Directionality (XY: 2D): ±0.8 m or less (with the STANDARD FORCE 10mm stylus), ±2.5 m or less (with the 50mm stylus)
Directionality (XYZ: 3D): ±1 m or less (with the STANDARD FORCE 10mm stylus), ±4 m or less (with the 50mm stylus)
Amount of over-travel:
- XY: XY±14º, Z+4mm (when the required force to generate trigger signal is 0.07N)
- Z: ±4mm (when the required force to generate trigger signal is 0.07N), +3mm (at 0.15N)
Maximum stylus length: 50mm (STANDARD FORCE); 60mm (MEDIUM FORCE); 60mm (EXTENDED FORCE)
Stylus mounting method: M2 screw
Mass of a single probe unit: 22g
Durability: 1,000,000 times
Probe head: Essential: PH10M/PH10MQ/MIH/PH1
Applicable models: Manual/CNC coordinate measuring machines
Configuration

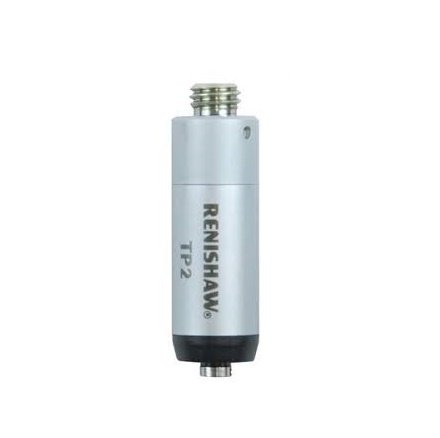

TP2-5W
PH1 (ø14)
Carbon fiber extension bar
Stylus
Single-ended wrench
Double-ended wrench
MS2-stylus tool
Allen keys (4-piece set)
Storage box
User's Manual
Certificate
Signal cable 935793
