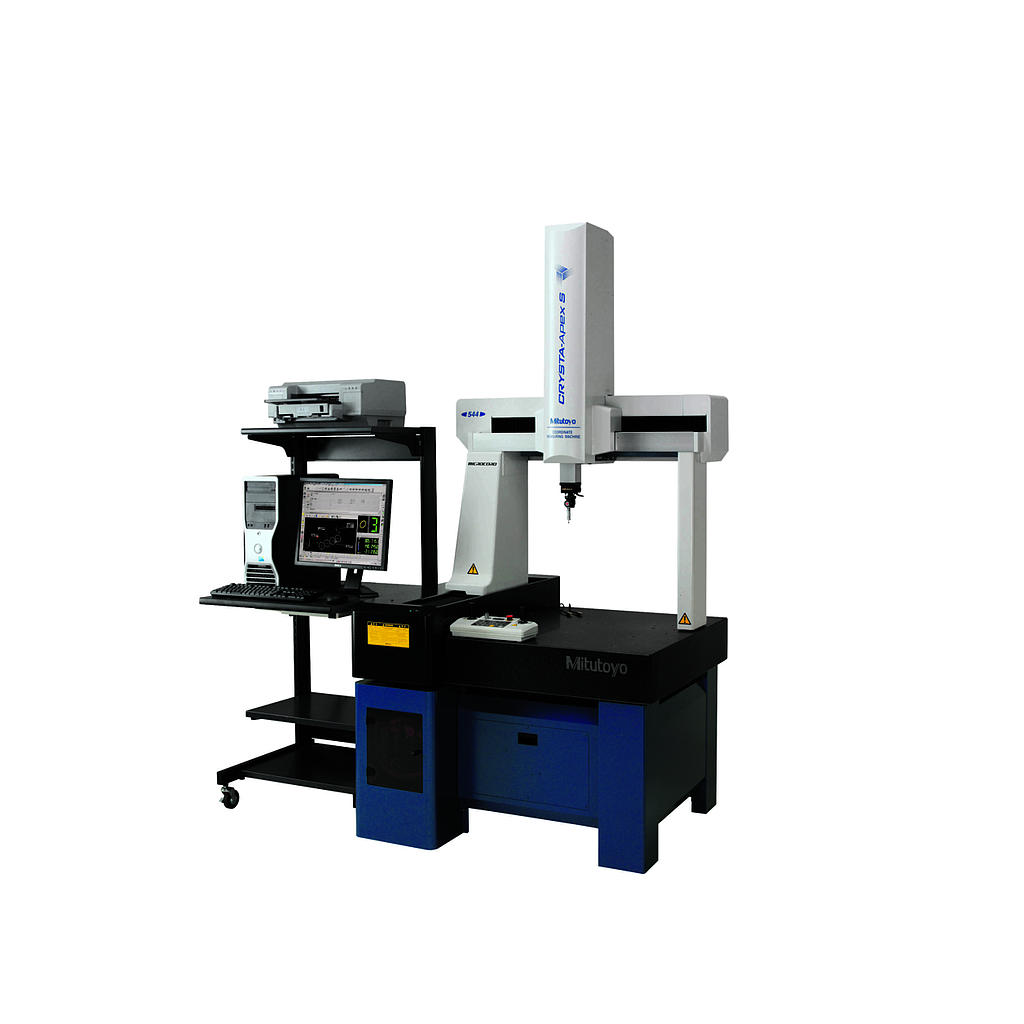

MITUTOYO CRYSTA-Apex S 544 Coordinate Measuring Machine (500 mm, 400mm, 400mm)

Name: MITUTOYO CRYSTA-Apex S 544 Coordinate Measuring Machine (500 mm, 400mm, 400mm)
Brand: MITUTOYO

ModelCRYSTA-Apex S 544

P/N191-244-10

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Measuring range:

X-axis 500 mm

Y-axis 400mm

Z-axis 400mm

Resolution: 0.0001 mm (0.1 μm)

Guide method: Air bearings on each axis

Drive speed

- CNC MODE: Drive speed 8 - 300mm/s; max. speed: 519 mm/s

- J/S MODE: 0 - 80mm/s (J/S Mode: High Speed); 0 - 3mm/s (J/S Mode: Low Speed); 0.05 mm/s (J/S Mode: Fine Speed)

Max. measuring speed: 8 mm/s

Max. drive acceleration: Each axis: 1,333 mm/s2, max. combined acceleration: 2,309 mm/s2

Workpiece

- Maximum height: 545 mm

- Maximum mass: 180 kg

Mass (including the control device and installation platform): 515 kg

Air supply

- Pressure: 0.4 MPa

- Consumption: 50 L/min under normal conditions (air source: 100 L/min)
