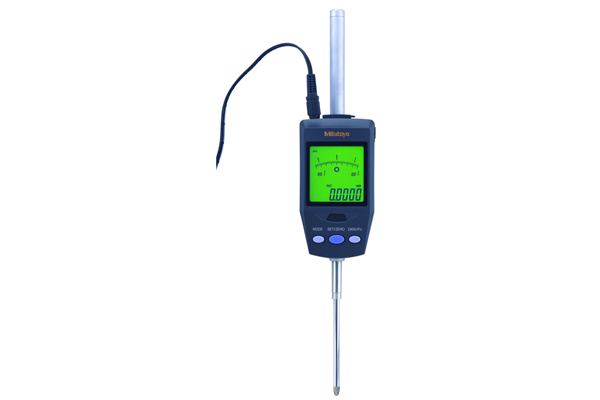

MITUTOYO 543-564E Electronic comparison meter

Range:2.4"/60.9 mm

Range:2,4" Inch

Digital step: 0,00002"/0,00005"/0,0001"/0,0005 mm/0,001 mm

Max. Permissible Error (Total Range): 0,0001"/0,0025 mm

H MPE (Hysteresis): 0,0001"/0,0025 mm

Data output: Yes

Mass: 305 g

Measuring force: ≤2,5 N N

Digital step: Switchable, 0,00002" / 0,00005" / 0,0001" / 0,0005 mm / 0,001 mm

Scale: Photoelectric linear encoder

Max. response speed: 1000 mm/s

Stem Ø: 9,52 mm

Contact point: Carbide ball, thread # 4-48 UNF

Alarm: Counting value composition error, overflow error, tolerance setting error

Power supply: AC adapter 6 V DC, 2A

Protection: IP30

Display: LCD, character height: 9.5 mm

Max. response speed: 1000 mm/s

Remarks: RS-232 input / output is applicable with appropriate connecting cable (1m: 21EAA130 or 2m: 21EAA131).

Delivered: Including AC-Adapter, spindle lifting handle

PRESET: Yes

Counting direction switchable: Yes

ZERO: Yes

GO/±NG judgement: Yes

Digimatic data output: Yes

ON/OFF: Yes

DATA (output with cable) / HOLD (display value): Yes

Lock function: Yes

Selectable resolution: Yes

Function lock: Yes

Max/Min/Runout value: Yes

RS-232C Output/Input: Yes

RS-232C Input*: Yes

Analog bar resolution switchable: Yes

Digital/Analog: Digital

Inch-Metric:

Inch/Metric

Type: ASME/ANSI/AGD Standard
