Measuring direction: ±X, ±Y, +Z
Standard stylus: ø4X18mm
Directionality (XY: 2D): ±0.25 m or less
Required force to generate trigger signal:
XY 0.02N (When the 50mm stylus is used.)
Z 0.15N (When the 50mm stylus is used.)
Amount of over-travel:
XY ±16º
Z ±5mm
Required force to achieve over-travel:
XY 0.49N (When the 50mm stylus is used.)
Z 2.94N (When the 50mm stylus is used.)
Maximum stylus length: 150mm
Stylus mounting method: M4 screw
Mass of a single unit: 85g
Durability: 10,000,000 times
Probe head: Essential: PH10M/PH10MQ
Applicable models: CNC coordinate measuring machines
Configuration

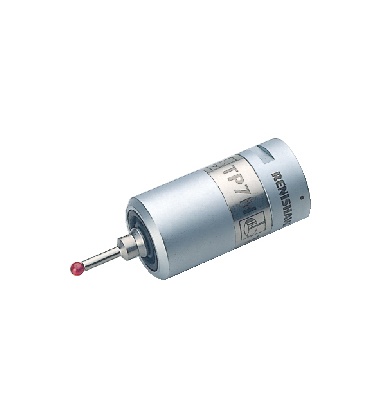

Touch trigger probe TP7M
Joint key S10
M4-stylus tool
M2-stylus tool
Stylus ø8X100 (M4)
Stylus ø8X50 (M4)
Stylus ø4X18 (M4)
Stylus ø2X19 (M4)
Stylus ø1X19.5 (M4)
Stylus ø30 ceramic (M3)
Stylus ø5X21 (M3)
Stylus ø0.5X20 (M3)
Stylus ø6X10 (M2)
Stylus ø3X10 (M2)
Extension L100
Extension L75
Extension L50
Extension L20
Extension L50
Extension L30
Extension L30
Extension L20
Extension L10
Adapter L9
Adapter L5
MS4-stylus center
MS3-stylus center
MS2-stylus center
Wooden box
Probe extension PEM1
Probe extension PEM2
Probe extension PEM3
Wooden box
User's Manual
