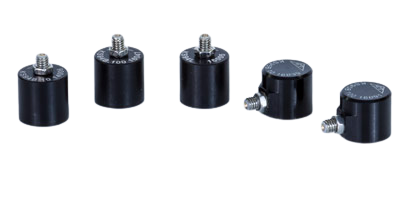

MMF KS95C10 Miniature Accelerometer (10mV/g, ±600g)
Output: IEPE
Sensitivity: 10 mV/g
Measuring range: ±600 g
Linear frequency range (±3 dB): 0.15 .. 35000 Hz
Connector: M3 socket, radial
Weight: 3.2 g
Connection accessories:
• 009-SUB-BNC-1,5: cable Subminiature / BNC; 1.5 m
• 009-SUB-UNF-1,5: cable Subminiature / UNF 10-32; 1.5 m
• 010-UNF-BNC-5/10: cable UNF 10-32 / BNC; 5 / 10 m (for extension)
• 016: Coupler for 2 UNF 10-32 plugs
• 017: Adapter UNF 10-32 / BNC (male)
• 117: Adapter UNF 10-32 / BNC (female)
• 025: Adapter UNF 10-32 / TNC (male)
Mounting accessories:
• 002: Adhesive wax
• 021: Mounting stud M3
• 106: Insulating flange M3
• 129: Insulating adhesive pad M3
• 022: Thread adapter M3 / M5
• 108: Magnetic base M3
• 130: Triaxial mounting cube M3
• 140: Handle adapter for curved surfaces
Datasheet
