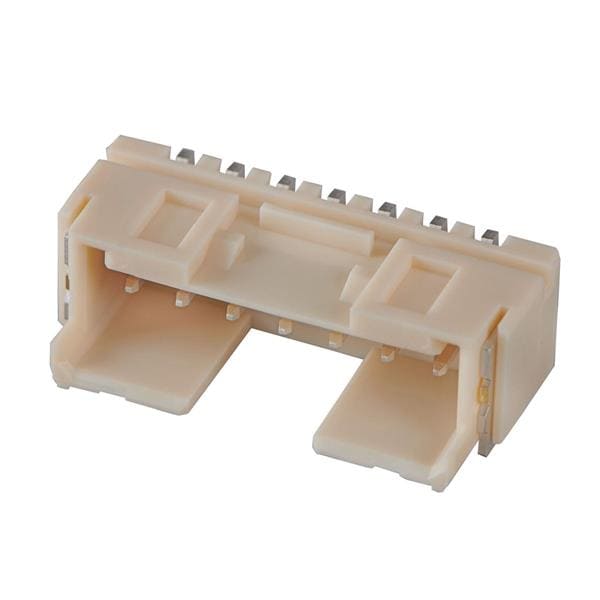

Molex 215932-0470 Wire to Board 2.50mm Pitch Mini-Lock PCB Header Single Row Right-Angle SMT 4 Circuits
ManufacturerMolex(View more products from this manufacturer)
Model215932-0470
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 2.5 mm (0.098 in)
Application: Wire-to-Board, Signal
Housing Color: Natural
Current Rating: 5 A
Mounting Angle: Right Angle
Mounting Style: PCB Mount
Number of Rows: 1 Row
Voltage Rating: 250 V
Contact Plating: Tin
Contact Material: Brass
Housing Material: Polyamide (PA)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 4 Position
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
