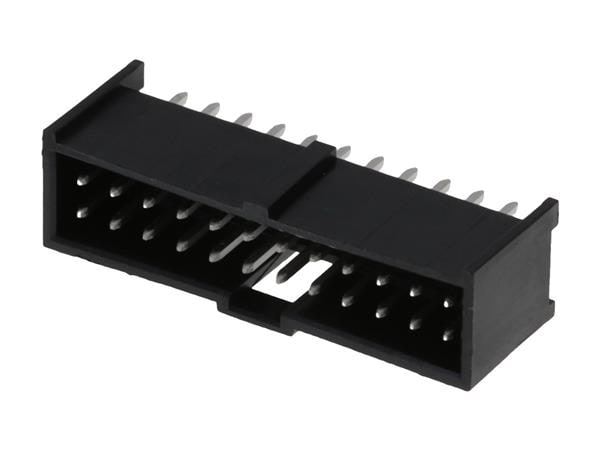

Molex 90130-1124 Shrouded 2.54MM CGRIDIII HDR 24P V DR SHRD TIN

Pitch: 2.54 mm (0.1 in)

Application: Wire-to-Board, Signal

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 2.694 g

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 350 VAC/DC

Contact Plating: Tin

Contact Material: Tin

Housing Material: Polyester

Termination Style: Solder Pin

Mating Post Length: 6.75 mm (0.266 in)

Flammability Rating: UL 94 V-0

Number of Positions: 24 Position

Termination Post Length: 2.9 mm (0.114 in)

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
