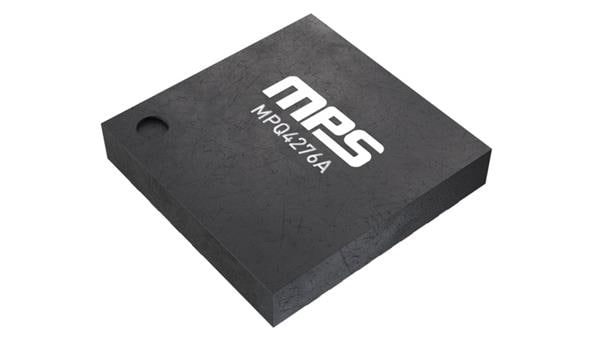

Monolithic Power Systems (MPS) MPQ4276AGU-AEC1-Z Switch Mode Converter 36V, 6A, Configurable Frequency BuckConverter with Dual USB Charging Ports and PFM Mode under Light Loads, AEC-Q100

Shutdown: Shutdown

Topology: Buck

Input Voltage: 6 V to 36 V

Mounting Style: SMD/SMT

Output Current: 6 A

Output Voltage: 5.3 V

Load Regulation: 1 %

Number of Outputs: 1 Output

Quiescent Current: 800 uA

Input Voltage - Max: 36 V

Input Voltage - Min: 6 V

Switching Frequency: 200 kHz to 2.2 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
