Drilling /face mill / end mill cap. ( steel ): 32/76/20 mm
Tapping cap. ( optional ): 16 mm
Longitudinal travel: 460 mm
Cross travel: 190 mm
Spindle stroke: 130 mm
Column diameter: Ø115 mm
Table size: 730 x 210 mm
T-slot ( width x no. x pitch ): 16 x 4 x 26 mm
Spindle speed: 150~3000 rpm (12 steps)
Spindle speed ( optional ): 75~3000 rpm (24 steps)
Spindle taper: MT#3 or R8
Spindle motor: 1.5 HP
Net weight: 230 kgs

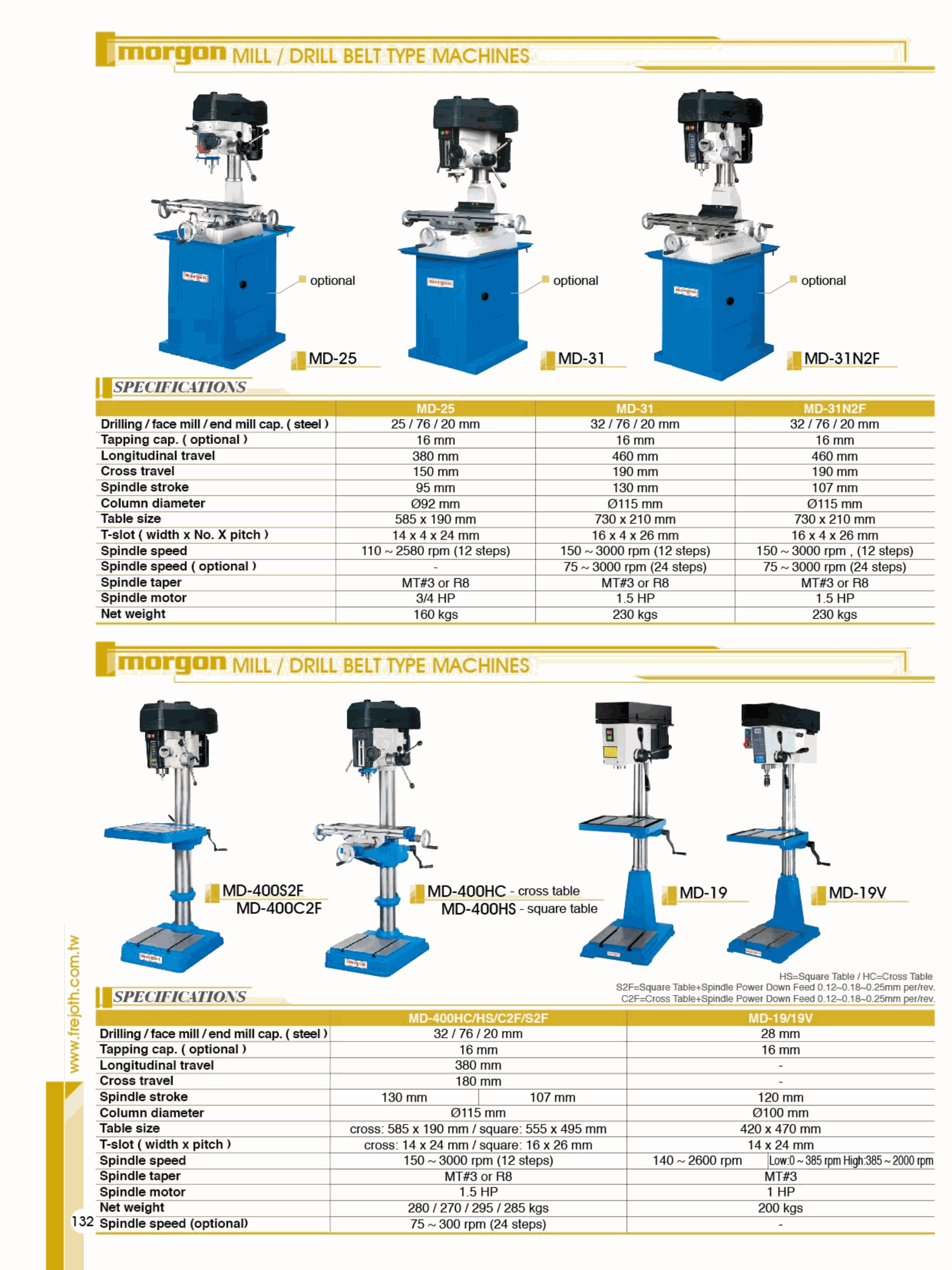

Datasheet
