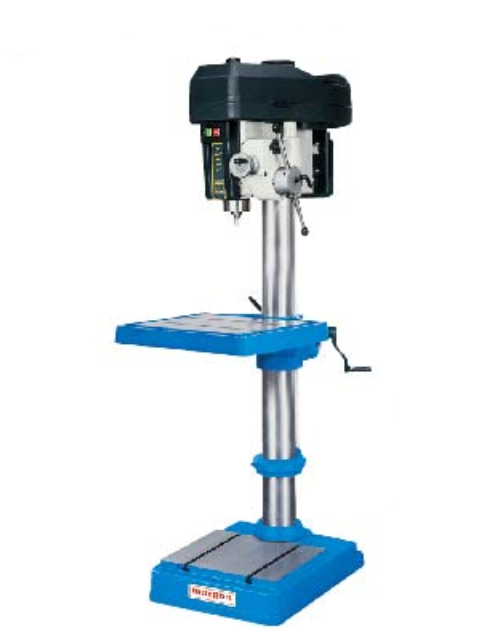

Drilling /face mill / end mill cap. ( steel ): 32/76/20 mm
Tapping cap. ( optional ): 16 mm
Longitudinal travel: 380 mm
Cross travel: 180 mm
Spindle stroke: 107 mm
Column diameter: Ø115 mm
Table size:cross: 585 x 190 mm / square: 555 x 495 mm
T slot: cross: 14 x 24 mm / square: 16 x 26 mm
Spindle speed: 150~3000 rpm (12 steps)
Spindle taper: MT#3 or R8
Spindle motor: 1.5 HP
Net weight: 285 kgs
Spindle speed ( optional ) 75~300 rpm (24 steps)
