Max. torque: 22.1 lbf.ft / 30N.m
Clamp dia.: 1-2"
Min- Max arm reach: 25.8"-59"
Weight of arm: 2.6 lbs
Features:
Secure the assembly process by ensuring that every screw is in the correct location at the right torque
Programmable sequence operation.
Error proofing.
Detects - cross threading, omissions, unfinished rundowns and cycle complete.
Compatible with DC Controlled Tools, torque electric screwdrivers (with transformers or controllers), air tools (ported).
Password protection and wall mountable.
Can interface with most intelligent driver systems that store multiple torque programs and has external digital I/O control.
Eliminates torque reaction of power tools. Can be used with a variety assembly tools.
Quick and easy to setup. Self teaching and automation program mode.
Programmable: Positioning Tolerance, Min. and Max. time for Poka Yoke control (automatic or manual) and 99 memory points.

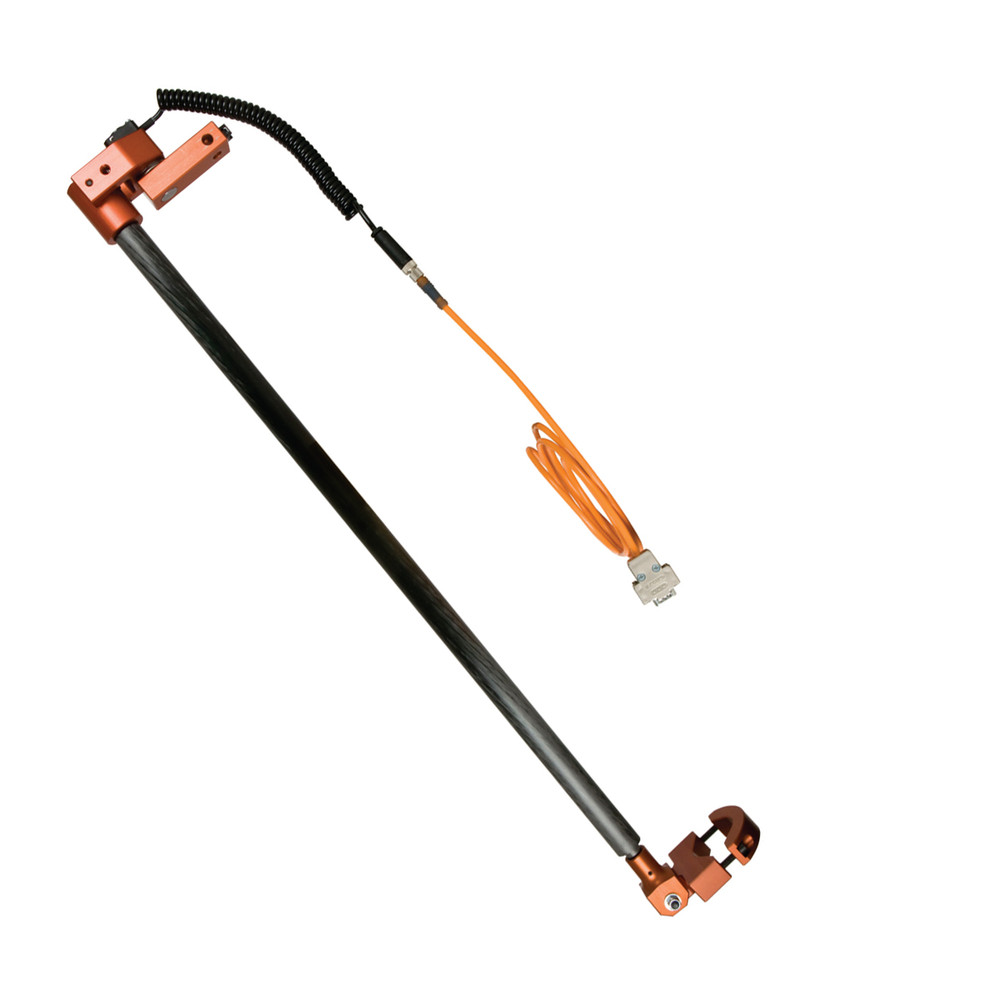

Crafted with lightweight durable carbon fiber the arm collapses like a telescope.
Easy-to-use, requires little space and doesn't disrupt production flow.
The effortless handling of the torque arm provides comfortable tool operation and increased production.
Mountable and easy to install on a wall, workbench and a standard rail or trolley system.
Maintenance free.
Long arm reach capability up to 6 1/2 ft.
Operates with touch posi-control device.
Torque Arm is available in 3 options:
APC model - Equipped with one angle coder.
LPC model - Equipped with one cable length coder.
LAPC model - Equipped with one cable length coder & one angle coder.
