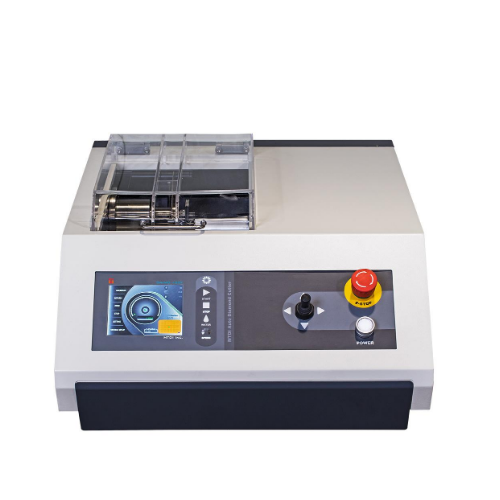

MTDI DIAMO-100F Precision Diamond Cutter (300 ~ 5,000 RPM)

Dimension (WxDxH): 560㎜ x 760㎜ x 330㎜

Power: AC 220V, Single phase, 50~60Hz, 900W

Moter: 1kW BLDC Motor

Wheel Size: 4 ~ 7" (Arbor 12.7mm)

RPM: 300 ~ 5,000 RPM, Digital type

Cut Capacity: 30Φ(5" Wheel), Max. 40Φ

Safety: Cover open sensing, Cut Finish Alarm and Auto Stop

Advantage:

5.6” TFT LCD Touch Screen for easy use

Auto sensing wheel load during the cutting

User can input Absolute or Relative position for stage move

Display current position of stage

Control Cutting length in 1㎛ unit

Wheel RPM auto calibration

Stage Zero set available

Continuous Cutting through Schedule mode

Stage move FWD/BWD by Joystick

Save/Load Set value(Max. 5)

Increase cutting length precision by input Wheel thickness

Minimize Burr by add Rotation function(Option)

Controls: Power, Start, Stop, Speed Control, Pump

Coolant: Double layer filtered Pump (3 liter)

Precision: 0.001mm step
