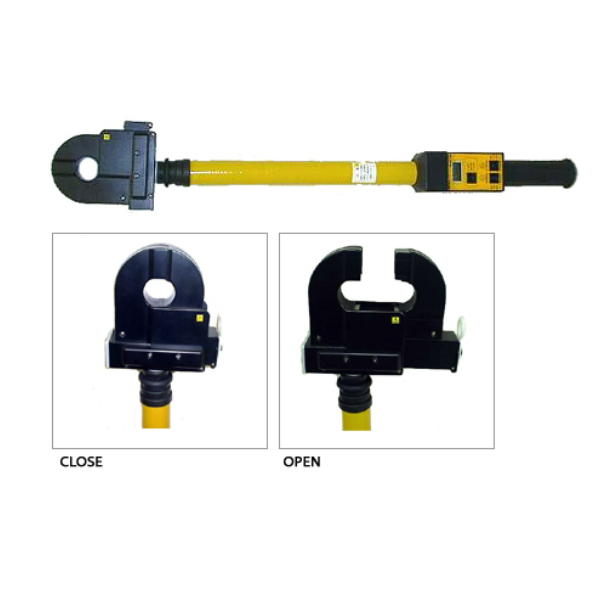

CT: φ37mm
Withstanding voltage: AC 2300V, 1 minute
Measuring function: Leakage current, Harmonic current(Fundamental and third harmonics)
Accuracy: (23℃±5℃, less than 80%RH)
Range/Resolution/Accuracy(45～65Hz) */Max.Input Current:
300μA/100nA(0.1μA)/1.2%±8digit/40A rms
3mA/1μA(0.001mA)/1.2%±8digit/40A rms
30mA/10μA(0.01mA)/1.2%±8digit/40A rms
Measuring range: AC 0-300μA/3mA/30mA(3range manual)
Input frequency: 45-60Hz(Fundamental frequency)
Power supply: AA size Alkaline battery × 4
Limitation of circuit voltage: Less than 500V AC
Operating Temperature: 0～40℃, less than 80%RH, w/o condensation
Storage Temperature: -10～60℃, less than 70%RH, w/o condensation
Dimensions: 160(W)×84(D)×950-2680(L)mm
Weight: Approx. 2.6kgs
