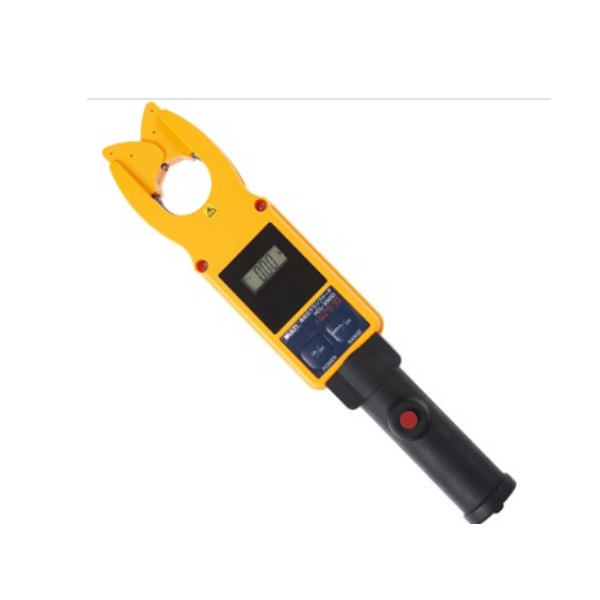

MULTI HCL-3000D High Insulation Digital Clamp Tester (0.001A～20A AC)

Measuring function: AC load current

Measuring Range: AC 0～2000mA/20A (50Hz/60Hz), 2 ranges manual

Jaw opening capability: φ35mm

Accuracy (23℃±5℃ 80%RH or less)

Range/Resolution/Accuracy(50/60Hz)

AC 2000mA/1mA/±2%rdg±8dgt

AC 20A/0.01A/ ±2%rdg±8dg

Limitation of circuit voltage: AC 80Vrms to 7000Vrms

Insulation Resistance: 100MΩ or more by DC 1000V insulation tester

Withstanding Voltage: AC 15kV, 1 minute

Size and Weight: 70(W)×356(H)×32(D)mm, Approx. 370gs.

Operating Temperature: 0～40℃, less than 80%RH without condensation

Power supply: AAA size battery×2
