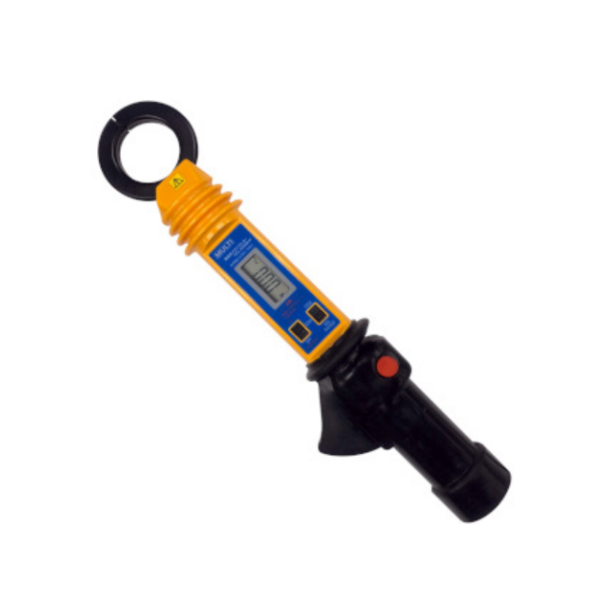

MULTI HCL-5000KN+ High Insulation Digital Clamp Tester (0.01A～500A AC)

Display: 3.5 digit LCD, max. reading of 1999

Measuring ranges: AC 20 mA/200 A/500 A

Accuracy: 23℃±5℃ 80%RH or less (50/60Hz)

Range/Resolution/Accuracy:

20 A//0.01A/±2.0％rdg±10dgt

200 A/0.1A/±2.0％rdg±10dgt

500 A/1A/±2.0％rdg±5dgt(0~400A)

500 A//1A/±2.5％rdg±5dgt(401~500A)

Inside diameter of CT: φ40mm

Withstanding voltage: AC 14000V/1 minute

Sampling rate: 2 times/sec

Operating temperature: 0～40℃, < 80%RH (without condensation)

Power supply: AA manganese battery UM-3×2

Dimension: 76(W)×328(H)×42(D)mm

Weight: Approx. 295g

Accessories: Carrying case, Batteries, Instruction manual
