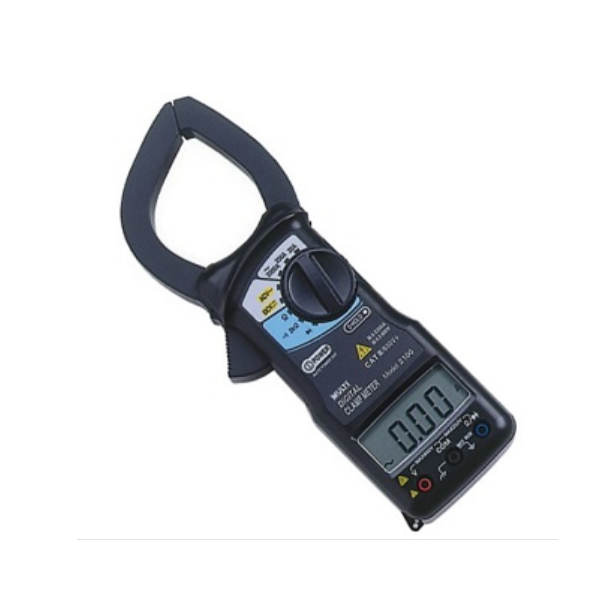

MULTI M-2100 Digital Clamp Tester (20A/200A/2000A)

Display: 3.5 digit LCD, max. reading of 1999

Jaw opening capability: 55mmφ

Sampling: 2 times/sec

Withstanding voltage: AC 3700V 1 minute max. (Between the core of CT and outer case)

Operating temperature: 0℃ to 40℃, 80%RH max. ( Without condensation )

Storage temperature: -10℃ to 60℃, 70%RH max. ( Without condensation )

Power supply: 1.5V (AM-4, LR03 or AAA)×2

Power consumption: 3.5mW

Auto power off: Approx. 10 minutes later after power on

Battery life: Approx. 500 hours continuous

Size: 85(W)×240(H)×34(D)mm

Weight: Approx. 350g

ACA (50/60Hz): 20A / 200A / 2000A

ACV (50/60Hz) DCV: 2V / 20V / 200V / 750V

Ω: 200Ω - 20MΩ

Continuity check: 2kΩ

Diode test: 2V
