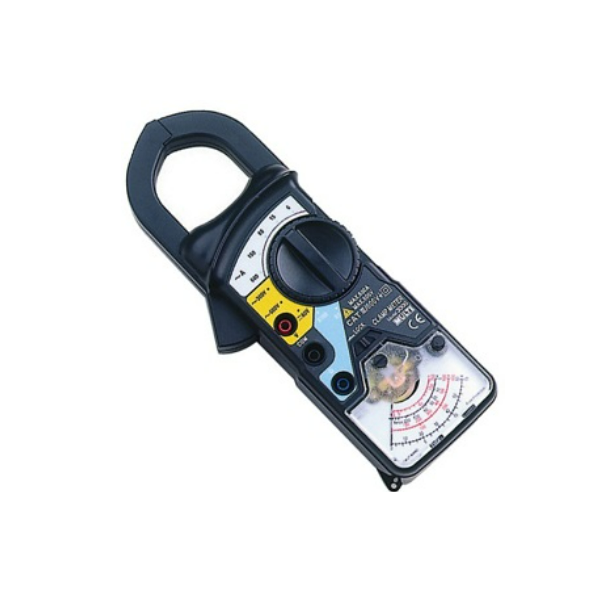

MULTI M-3000 Analog Clamp Tester (6A/15A/50A/150A/600A)

Withstanding Voltage: AC 5500V 1 minute max. (Between the core of CT and outer case)

Storage Temperature: -10℃ to 60℃, 70%RH max. ( Without condensation )

Accuracy: ±3% of full scale(50/60Hz)

Operating Temperature: 0℃ to 40℃, 80%RH max. ( Without condensation )

Power supply: 1.5V (AM-4, LR03 or AAA)×2

Weight: Approx. 400g

Jaw opening capability: 40mmφ

Size: 69(W)×210(H)×34(D)mm

Current range: AC 0～6A/15A/50A/150A/600A

Voltage range:

AC 0～300V/600V

DC 0～60V

Resistance range: 0～1kΩ/100kΩ(50Ω/5kΩcenter)

Temperature: -50℃ to 200℃ (Optional thermister sensor)
