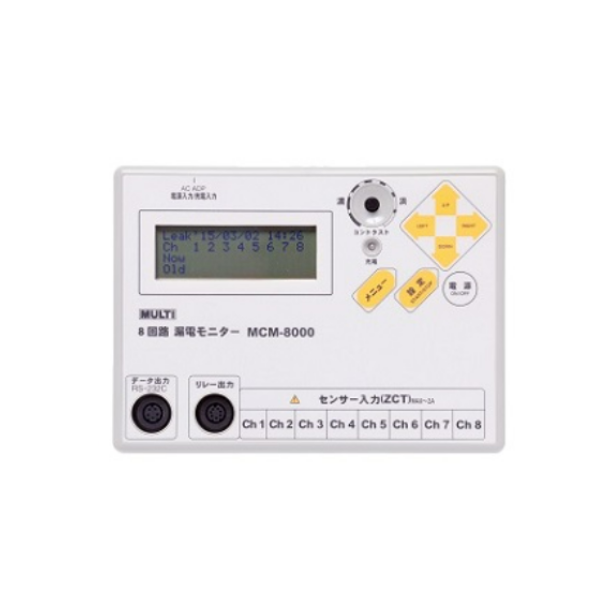

MULTI MCM-8000 Multi Circuit Leakage Current Monitor (0～2000mA)

Number of Measuring Circuit: 8 circuits (channels)

Measuring Range: 0～2000mA

Minimum Resolution: 1mA

Measuring Accuracy: ±3%rdg±2dgt (by standard CTs)

Sampling: Approx. 20mS

Range of Setting Values: 10～1000mA (Initial setting : 50mA)

Measuring Temperature: 0～50℃, less than 80%RH w/o condensing

Storage Temperature: -10～60℃, less than 80%RH w/o condensing

Withstanding Voltage: AC1500V (50 / 60Hz) one minute between power supply source and housing case

Power Supply: AC100V～240V with adapter Internal Ni-hydride Battery

Current Consumption: Approx. 40mA

Battery Life: Approx. 4 days at continuous use by full charge

Dimensions & Weight: 190(W) x 140(H) x 42(D)mm, approx. 700gs
