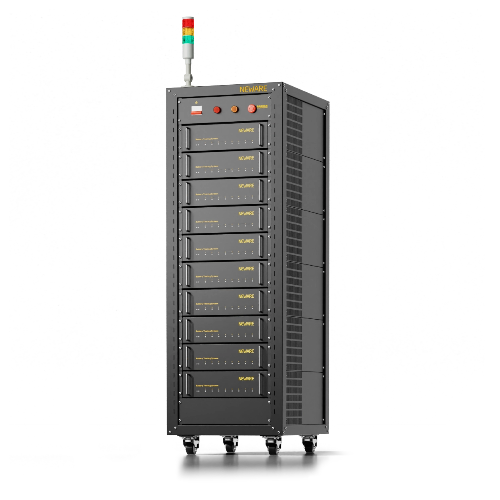

NEWARE CT-9000-5V5A Battery Testing System (5V, 12A)

Voltage

- Output range/channel

+ Charge: 0V～5V

+ Discharge: 0V～5V

- Min discharge voltage: 0V

- Accuracy: ±0.02% of range

- Stability: 0.005% of FS

Current

- Output range/channel: Range1: 0.1μA-150μA; Range2: 150μA-5mA; Range3: 5mA-150mA; Range4: 150mA-5A

- Accuracy: ±0.02%of FS

Range1: ±30nA; Range2: ±1μA; Range3: ±30μA; Range4:±1mA

- Stability: 0.005% of FS

Power

- Output power/channel: 25W

- Stability: ± 0.02% of FS

Temperature

- Temperature probe: K-type thermocouple

- Measurement range: -40 ~ +110℃

- Measurement accuracy: ±1℃

- Resolution: 0.1℃

- Date Record Frequency: 1Hz

Time

- Current response time: <= 100μS (10% to 90% or 90% to 10%);

- Working step time: ≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms)

Data Record

- Data record conditions:

+ Time Δt： >=1ms

+ Voltage ΔU： >= 1mV

+ Current ΔI： >= 100nA

- Frequency: 1000Hz (Continuous charge and discharge mode) / Pulse bypulserecording (GSM pulse mode);

Charge modes

- Charge modes: CC, CV, CCCV, CP, CR

- Cut-off condition: Voltage、Current、-△t、Capacity、Energy、Power

Discharge

- Discharge modes: CC、CV、CR、CP、Pulse

- Cut-off condition: Voltage、Current、-△t、Capacity

Pulse Mode

- Charge: CC Mode

- Discharge: CC Mode

- Minimum pulse width: 400μs

- Pulse number: A single pulse step supports 16 different pulse segments

- Cut-off condition Voltage、-△t

DCIR Test: Support DCIR step
