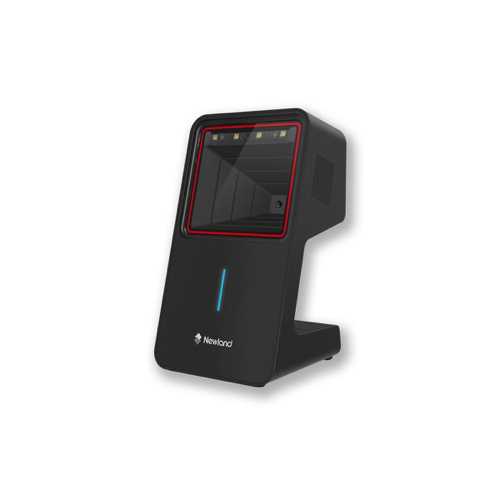

NEWLAND FR4280-BT Desktop Scanner (1080*1280 CMOS; ≥3mil)

Image Sensor: 1080*1280 CMOS

Light Source: White LED

Barcodes: 2D; 1D

Resolution: ≥3mil

Depth of Field: EAN-13: 10mm-130mm (13mil) QR Code: 15mm-110mm (15mil) Code 39: 35mm-80mm (5mil).

Scan Angle: Pitch: ±60°; Roll: 360; Skew: ±65°

Field of View: Horizontal 62°, Vertical 54°

Minimum Symbol Contrast: 15%

Motion Tolerance: 1.8m/s

Connectivity: Bluetooth 5.0 BLE and HID, Bluetooth Dongle CDC/KBW/HID-POS

Operating Voltage: 5VDC±5%

Dimensions (L×W×H): 82.0×77.0×146.0mm

Weight: 209g

Notification: Beeper, LED

Illumination: 015000lux (screen barcode); 0120000lux (paper barcode)

Operating Temperature: -10°C to 55°C (14°F to 131°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: 5%~95% (non-condensing)

ESD: ±12 KV (air discharge); ±8 KV (contact discharge)

Drop Resistance: 1.5m/4.9ft

Protection Rating: IP52

Communication Distance: Bluetooth 5.0: 50m/164ft (line of sight in open space)

Battery: 2000 mAh lithium-ion battery

Battery Life: 9.5 hours continuous operation (scanning once every 3 seconds) 16 hours continuous operation (scanning once every 10 seconds)
