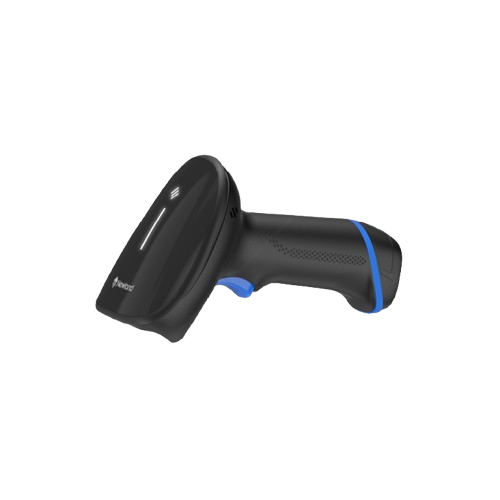

NEWLAND HR2000-BT Wireless 2D Barcode Scanner (CMOS 640×480; ≥3mil)

Image Sensor: CMOS 640 × 480

Illumination: White LED; Red LED

Barcode Types: 1D, 2D (PDF417, QR Code, Data Matrix, Aztec, Micro QR, etc.)

Resolution: ≥ 3 mil

Depth of Field: EAN-13 (13 mil): 50 mm – 260 mm

Scan Angle: Pitch ±60°; Roll 360°; Skew ±60°

Field of View: Horizontal 45°; Vertical 34°

Minimum Print Contrast: 20%

Aiming Light: Laser beam

Interface: USB Type-A (USB-KBW, USB-CDC, HID-POS)

Wireless Connection: Bluetooth 5.0, up to 100 m

Operating Voltage: 5VDC ±5%

Rated Power Consumption: 1223 mW (typical)

Current Consumption @ 5VDC: 271.28 mA (typical), 281.39 mA (maximum)

Dimensions: 117.5 × 67.5 × 144 mm (scanner); 140 × 90 × 144.5 mm (cradle)

Weight: 209 g (scanner); 340.5 g (cradle)

Indication: Beep, LED, Vibration

Operating Temperature: -20°C to 60°C

Storage Temperature: -40°C to 70°C

Humidity: 5%–95% (non-condensing)

ESD Protection: ±15 kV (air discharge); ±8 kV (contact discharge)

Drop Resistance: 1.5 m drop onto concrete

Protection Rating: IP52
