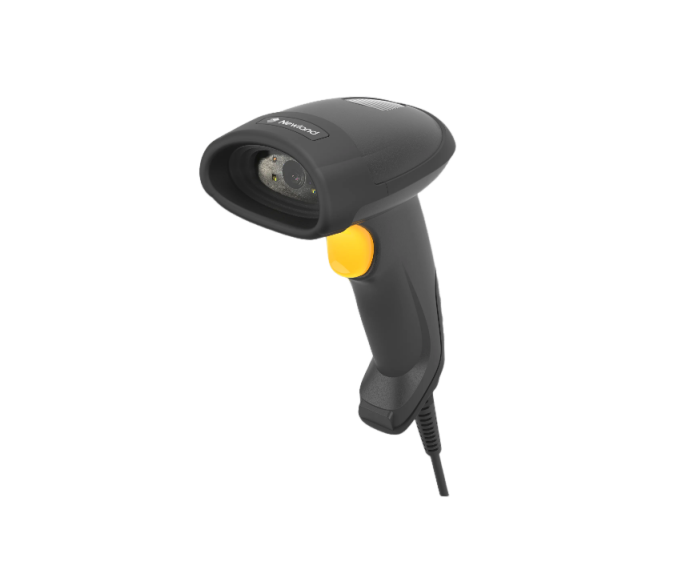

NEWLAND HR32 Corded Handheld Scanner (25mm-395mm)

Image Sensor: 1280×800 (megapixel) CMOS

Illumination: Red LED/ White LED

Symbologies: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.

PDF417, QR Code, Data Matrix, Aztec, Maxicode, etc.

USPS Postnet, Royal Mail, KIX Post, Australian Postal, etc.

Resolution: ≥3mil

Typical Depth of Field

55mm-570mm (13mil)

115mm-170mm (5mil)

85mm-225mm (6.7mil)

65mm-305mm (10mil)

25mm-395mm (15mil)

Scan Angle: Pitch: ±55°, Skew: ±55°, Roll: 360°

Min. Symbol Contrast: 25%

Field of View: Horizontal 39°, Vertical 24°

Aiming: Green LED

Physical

Dimensions (L×W×H): 113.5(W)×73.3(D)×159.0(H)mm

Weight: 162g

Notification: Beep, LED

Operating Voltage: 5VDC±5%

Current@5VDC: 238.2mA (typical), 260.5mA (max.)

71.3mA

Interfaces: RS-232, USB

Rated Power Consumption: 1289.6mW (typical)

Environmental

Operating Temperature: -20°C to 60°C (-4°F to 140°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Humidity: 5%~95% (non-condensing)

ESD: ±15 KV (air discharge); ±8 KV (contact discharge)

Drop: 1.5m

Sealing: IP42

Certifications

Certificates & Protection FCC: Part15 Class B, CE EMC Class B, RoHS
