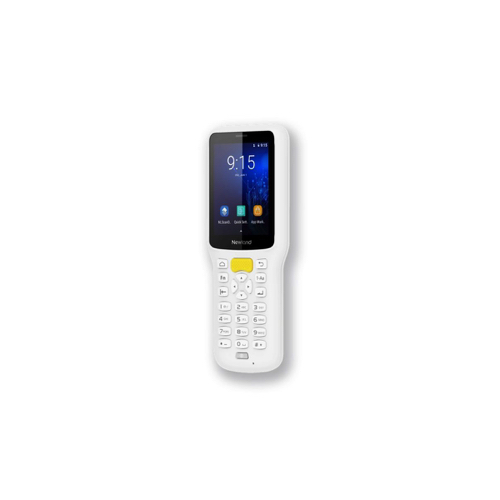

NEWLAND MT37H Portable Data Collector (1.8GHz, quad-core processor)

Processor: 1.8GHz, quad-core processor

Operating System: Android 8.1 Go

Memory: 1GB RAM, 8GB ROM

Barcode Symbologies: 1D: Code128, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, Codabar, Code93, Code 11, Plessey, MSI Plessey, RSS. 2D: Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode.

Depth of Field: Code128: 90mm-330mm(12.5mil) EAN13: 50mm-300mm(13mil) PDF17: 50mm-135mm(6.7mil) QR:20mm-210mm(15mil)

Dimensions: 158(L) × 59(W) × 18.3(H) mm

Weight: 155g (including battery)

Display: 2.8-inch (320×240) capacitive touch screen

Keypad: 24 keys

Notifications: Vibrator, speaker, and multi-color LED

Battery: 3.8V, 3300mAh (non-removable)

GPS: GPS (AGPS), GLONASS, Beidou

Multimedia: Speaker * 1, Microphone * 1

Card Slot (For 4G version): *SIM 1

Connectivity: USB Type–C at the bottom

AC Adapter: Supports fast charging

Operating Temperature: -20°C to 50°C (-4°F to 122°F)

Storage Temperature: -30°C to 60°C (-22°F to 140°F)

Humidity: 5% to 95% (non-condensing)

ESD: ±12 kV (Air discharge), ±8 kV (Direct discharge)

Drop Specification: 1.2m drops to concrete (for six sides, one drop per side)

Antibacterial: Escherichia coli, Staphylococcus aureus

WLAN Radio: Built-in 802.11 a/b/g/n/ac, supports 2.4G and 5G dual frequency

WWAN Radio (For 4G version): GSM 2G: 850/900/1800/1900 MHz WCDMA 3G (B1, B2, B5, B8); TD-SCDMA (B34, B39) 4G TDD-LTE (B34, B38, B39, B40, B41) FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28)

WPAN Radio: Bluetooth 5.0 BLE

NFC (For 4G version): 13.56 MHz

.: ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693

Accessories (Optional): AC adapter, cable, protective case, wrist strap
