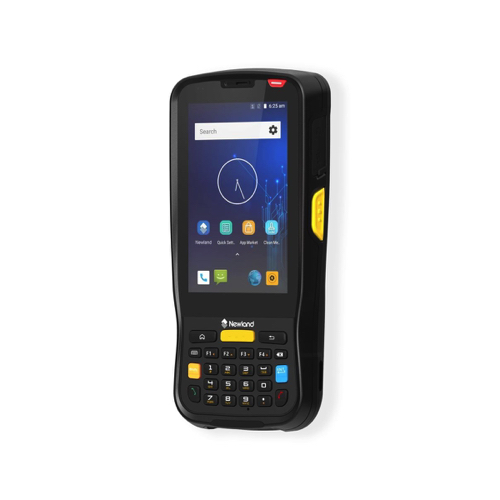

NEWLAND MT65 Portable Data Collector (1.5GHz quad-core processor)

Processor: 1.5GHz quad-core processor

Operating System: Android 8.1

Memory: 3GB RAM, 32GB ROM

Depth of Field: Code39 (20mil): 90mm-580mm; EAN13 (13mil): 45mm-380mm; Code39 (5mil): 75mm-180mm; DM (10mil): 50mm-180mm; PDF417 (6.7mil): 70mm-170mm; QR (15mil): 40mm-220mm

Dimensions: 166×73×26mm

Weight: 330g (including battery)

Display: 4-inch WVGA (800×480) capacitive touch screen

Keypad: 30 keys (including side keys) with backlight

Notification: Vibrator, speaker, and multi-color LED

Battery: 3.7V, 3800mAh

Battery Operating Time: 10 hours

Battery Charging Time: 4.5-5 hours (charged via AC adapter)

GPS: GPS (AGPS)

Camera: 8 megapixels, autofocus, with LED flashlight

Expansion: Micro SD card slot (up to 128GB)

Connectivity: Micro USB 2.0, supports USB charging

AC Adapter: Output: DC5V, 2.0A; Input: AC100~240V, 50~60Hz

Operating Temperature: -20°C to 50°C (-4°F to 122°F)

Storage Temperature: -30°C to 70°C (-22°F to 158°F)

Humidity: 5% to 95% (non-condensing)

ESD: ±15 kV (air discharge), ±8 kV (direct discharge)

Drop Resistance: 1.2m drops to concrete (for six sides, once per side)

Sealing: IP65

Accessories (Optional): Battery, AC power adapter, cable, etc.
