NF VT-2BPA Voltage Tunable Filter (200Hz ~ 20kHz) | EMINKH.COM

Filters
NF VT-2BPA Voltage Tunable Filter (200Hz ~ 20kHz)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

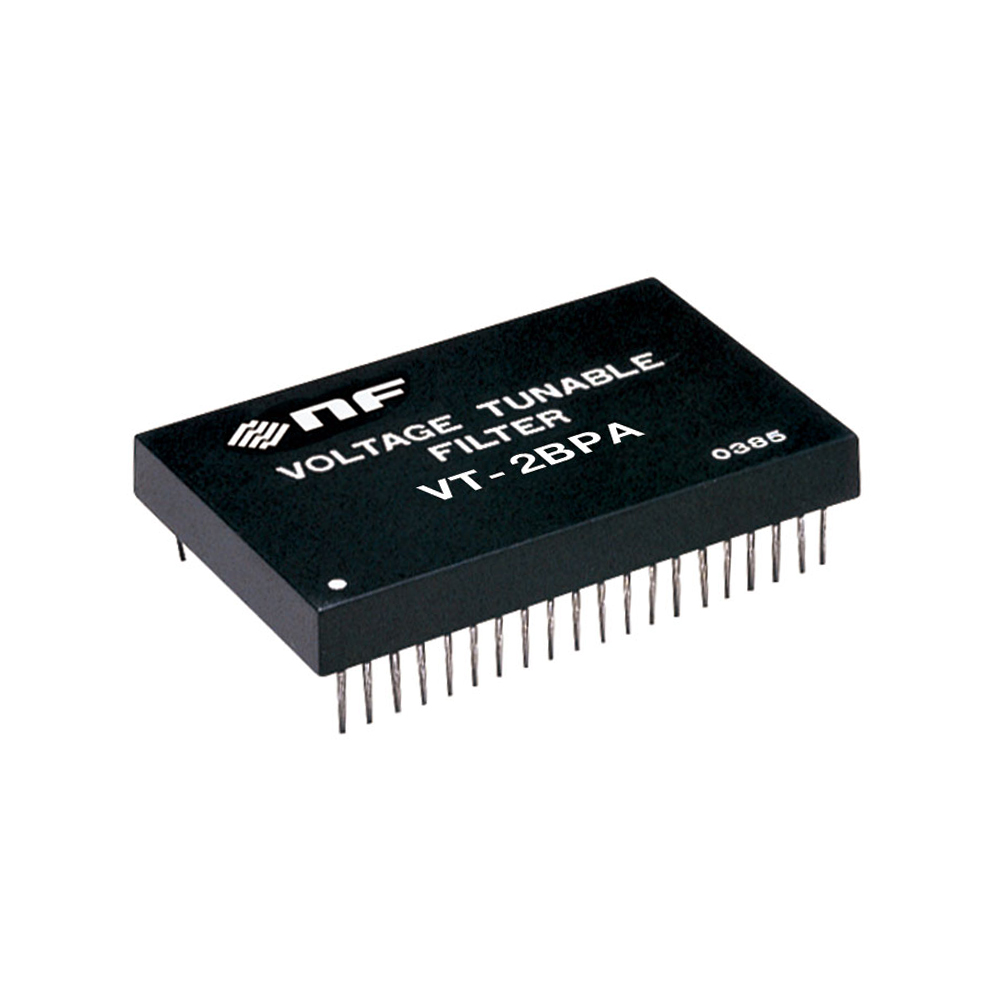

Product image

NF VT-2BPA Voltage Tunable Filter (200Hz ~ 20kHz)

ManufacturerNF(View more products from this manufacturer)

ModelVT-2BPA

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Characteristics: BPF, 2-pole pair Q=5

Rolloff: 12dB/oct BW

Cut-off (center) frequency range: 200Hz to 20kHz

Frequency setting: 6 externally connected resistors

Supply voltage : ±15V

Dimensions : 54.5 x 33.7 x 6.5 (mm), 40 pins, Dual-in-line package (DIP)
