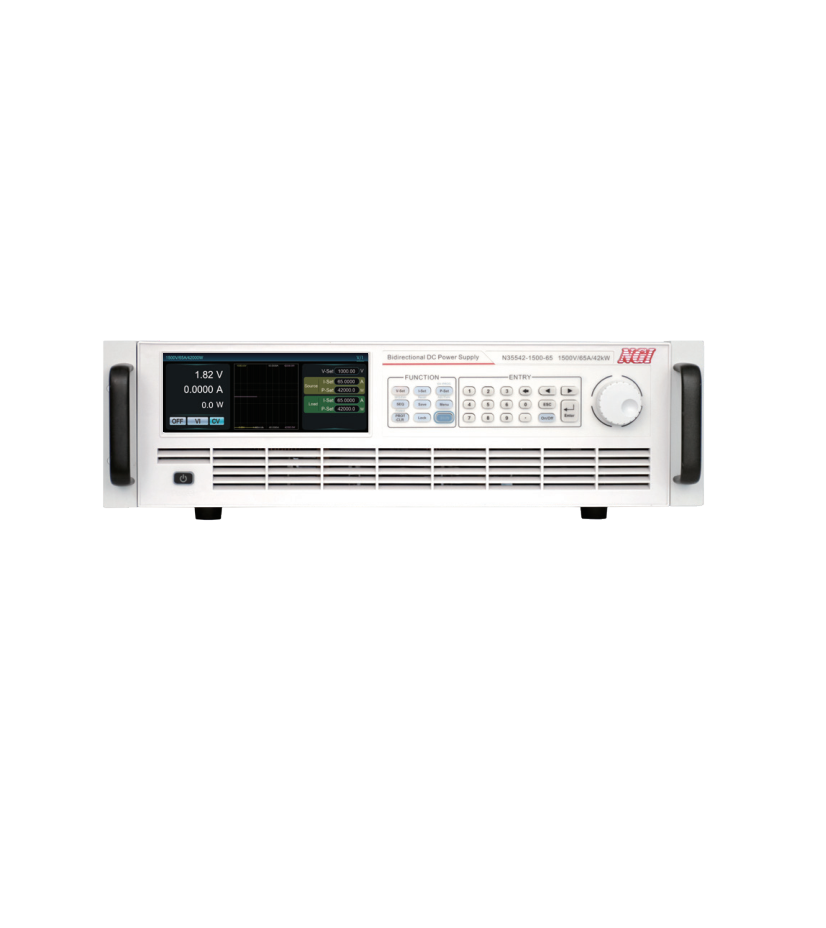

NGI N35522-360-160 High Power Bidirectional Programmable DC Power Supply (360V/160A/22kW, 3U)

Rated Voltage: 0~360V

Rated Current: -160A~+160A

Rated Power: -22kW~22kW

CV Mode

Range: 0~360V

Setting Resolution: 1mV

Setting Accuracy(23±5°C): ≤0.02%+0.02%F.S.

Voltage Ripple(20Hz-20MHz):

≤0.72Vp-p

≤400mVrms

CC Mode

Range: -160A~+160A

Setting Resolution: 1mA

Setting Accuracy(23±5°C): ≤0.1%+0.1%F.S.

Current Ripple(20Hz-20MHz):

≤1.4Ap-p

≤200mArms

CP Mode

Range: -22kW~+22kW

Setting Resolution: 0.1W

Setting Accuracy(23±5°C): ≤0.1%+0.1%F.S

Voltage Measurement:

Range: 0~360V

Readback Resolution: 1mV

Readback Accuracy(23±5°C): ≤0.02%+0.02%F.S

Temperature Coefficient: ≤15ppm/°C

Current Measurement

Range: -160A~+160A

Readback Resolution: 1mA

Readback Accuracy(23±5°C): ≤0.1%+0.1%F.S

Temperature Coefficient: ≤30ppm/°C

Others

Isolation (Output to ground): 1000V DC

Output Efficiency: 95%

Feedback Efficiency: 94.5%

Power Factor: 0.99

Dimension: 132.0mm(H)*482.0mm(W)*755.0(D)(with shield）

Net Weight: Approx. 42kg

Datasheet
