Conditions
Specifications are valid at -40 °C to 85 °C unless otherwise noted.
Input Characteristics
Number of channels: 16 isolated thermocouple channels, 4 CJC
Isolation: Galvanic isolation between channels and to chassis
ADC resolution: 24 bits
Type of ADC: Delta-Sigma
Sample mode: Simultaneous
Sample rate: User configurable
Timebases: 80 MHz, 20 MHz, 100 kHz
Voltage measurement range: ±78.125 mV
Temperature measurement ranges: Works over temperature ranges defined by NIST (J, K, T, E, N, B, R, and S thermocouple types)
Measures thermocouples in rugged environments. FieldDAQ™ devices are dust- and water-resistant and offer TSN technology for simplified distribution.

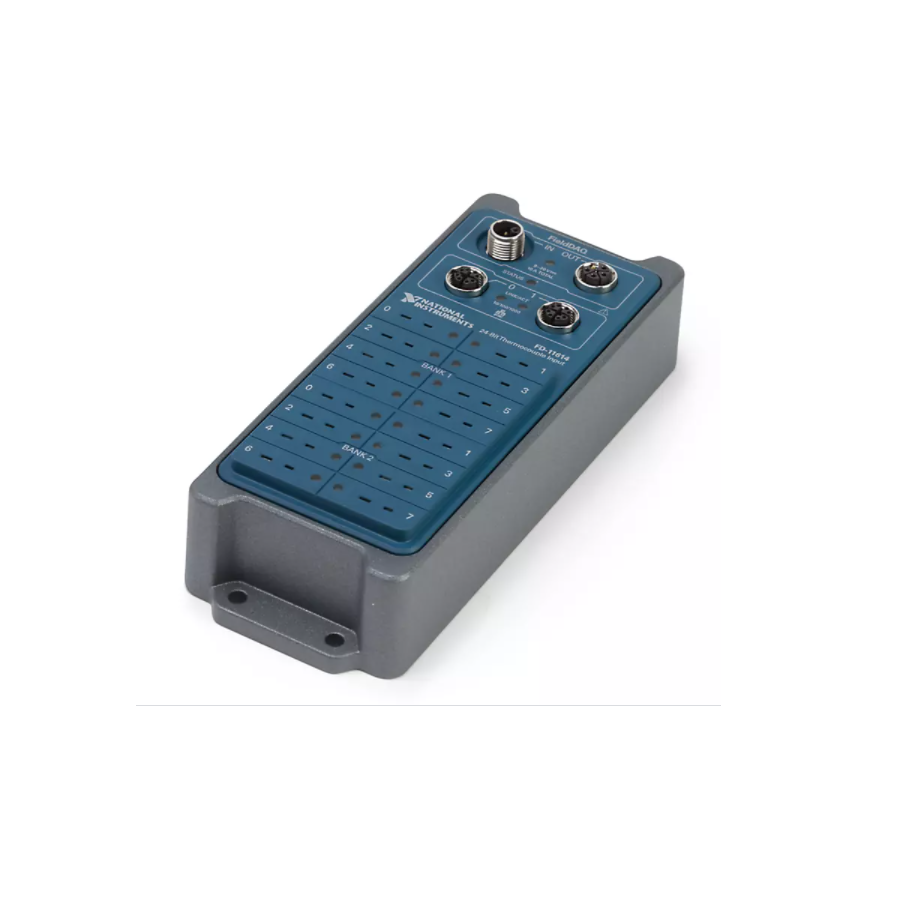

The Temperature Input Device for FieldDAQ measures up to 16 thermocouple channels. The module features cold-junction compensation and open thermocouple detection with an LED indicator per channel to identify disconnected thermocouples. Additionally, the module incorporates Time Sensitive Networking (TSN), which provides tight synchronization over a distributed network of data acquisition nodes without additional cabling or complex programming. The device also features an integrated network switch and built-in power circuitry for simple daisy chaining.The Temperature Input Device for FieldDAQ includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
