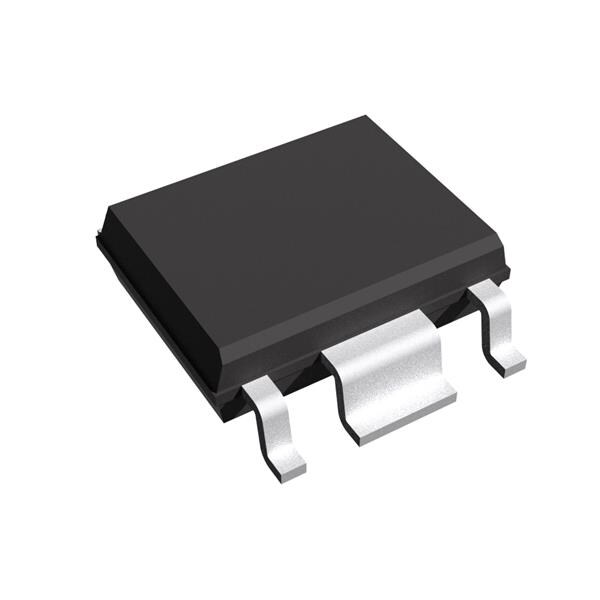

Nisshinbo R1190S100D-E2-FE Low Supply Current Voltage Regulator Low supply Current LDO Regulator

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 1 A

Output Voltage: 10 V

Dropout Voltage: 800 mV

Line Regulation: 0.02 %/V

Load Regulation: 130 mV

Number of Outputs: 1 Output

Input Voltage - Max: 16 V

Input Voltage - Min: 3.5 V

Dropout Voltage - Max: 1.3 V

Pd - Power Dissipation: 1.7 W

Operating Supply Current: 150 uA

Voltage Regulation Accuracy: 1.5 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 60 dB
