NI USB-8452 I²C/SPI Interface Device (I²C-3.33 MHz, SPI-50 MHz, Enclosed) | EMINKH.COM

Digital I/O
NI USB-8452 I²C/SPI Interface Device (I²C-3.33 MHz, SPI-50 MHz, Enclosed)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

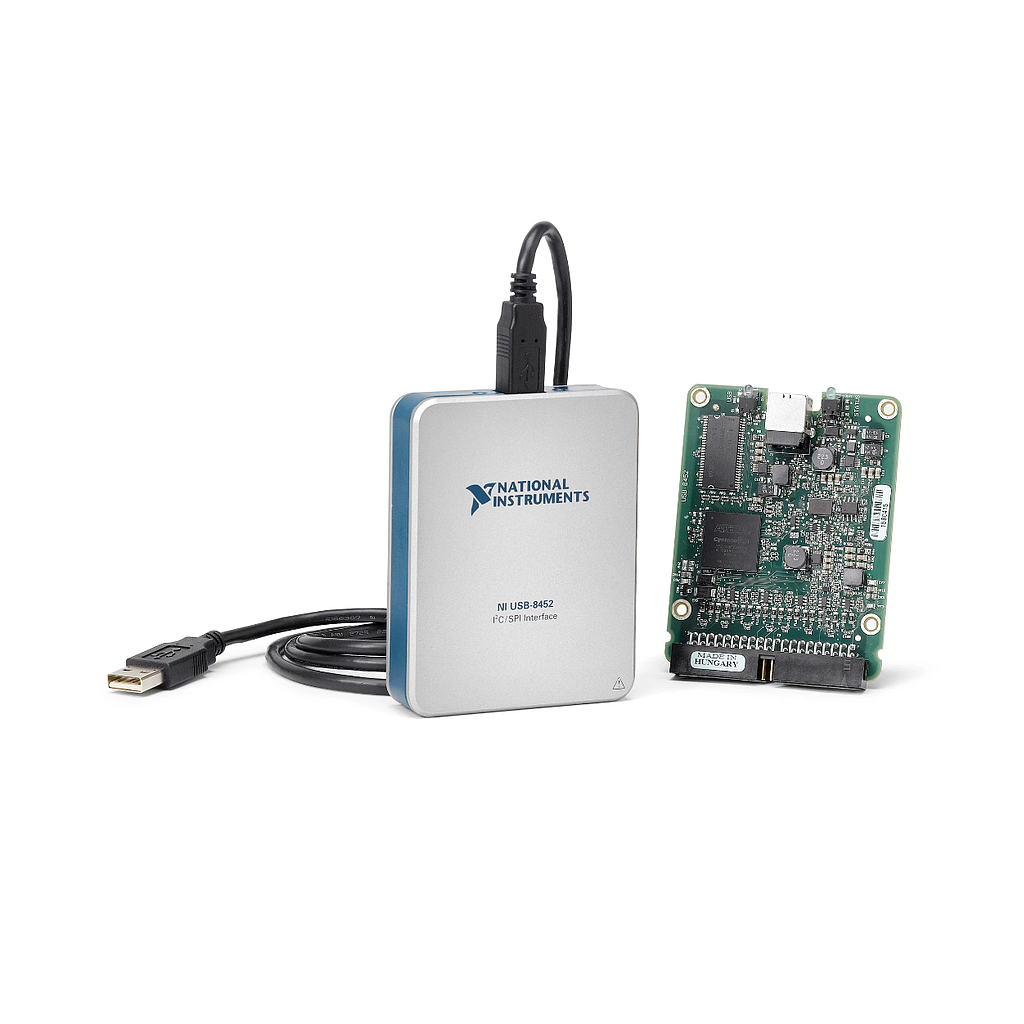

Product image

NI USB-8452 I²C/SPI Interface Device (I²C-3.33 MHz, SPI-50 MHz, Enclosed)

ManufacturerNI(View more products from this manufacturer)

ModelUSB-8452

P/N781964-03

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Maximum I²C Clock Rate: 3.33 MHz

Maximum SPI Clock Rate: 50 MHz

Enclosed: Yes

Connects to and communicates with devices using I²C, SMBus, and SPI protocols.

The I²C/SPI Interface Device is a master or slave interface for inter-integrated circuit (I²C), or master interface for serial parallel interface (SPI) devices. With plug-and-play USB connectivity, the I²C/SPI Interface Device is a portable solution to communicate with consumer electronics and integrated circuits. The I²C/SPI Interface Device can be physically located more closely to I²C/SPI devices than PCI interfaces, reducing I²C bus length and minimizing noise problems. The I²C/SPI Interface Device supports I²C rates up to 250 kHz and SPI rates up to 50 MHz, and it also includes eight general-purpose digital I/O lines for a variety of applications, such as configuring the address of I²C devices or toggling LEDs.

Datasheet
